Hyperfine Spectrometers |
The HyperFine series of spectrometers are based on LightMachinery's fluid jet polished technology. Designed for measuring hyperfine spectra and subtle spectral shifts, the HyperFine spectrometer from LightMachinery is a compact, low cost spectrometer capable of 1 picometer resolution. It is ideal for pulsed laser characterization and for measuring the small spectral shifts from Brillouin or Raman scattering. Simple PC based software allows the user to review spectra in real time and save or export for more analysis. LabView drivers enable the HyperFine spectrometer to be integrated into automated experimental setups. |
Features |
Applications |
|
Light Source Characterisation
Spectroscopy
Passive components characterization
|
Specifications |
Options
Versions |
Part Number |
Spectral Region |
Total range with manual grating rotation |
Simultaneous range without grating rotation |
Resolution pm |
Resolution 1/cm |
HF- |
UV |
270- |
12 nm |
<2.5pm |
0.3/cm |
HF- |
UV |
270- |
25 nm |
<5pm |
0.6/cm |
HF- |
UV |
250- |
50 nm |
<15pm |
1.7/cm |
HF- |
UV |
280- |
80 nm |
<15pm |
1.7/cm |
HF- |
UV |
fixed grating |
350- |
<25pm |
1.5/cm |
HF- |
VIS |
fixed grating |
425 - |
<30pm |
0.9/cm |
HF- |
VIS |
400 - |
15 nm |
1.0pm |
0.05/cm |
HF- |
VIS |
500 - |
15 nm |
1.0pm |
0.03/cm |
HF- |
VIS |
525 - |
15 nm |
1.0pm |
0.03/cm |
HF- |
VIS |
500 - |
15 nm |
15.0pm |
0.55/cm |
HF- |
VIS |
600 - |
15 nm |
15.0pm |
0.02/cm |
HF- |
NIR |
fixed grating |
700 - |
<30pm |
0.4/cm |
HF- |
NIR |
700 - |
25 nm |
2.0pm |
0.03/cm |
HF- |
NIR |
700 - |
6 nm |
0.5pm |
0.01/cm |
HF- |
NIR |
800- |
20 nm |
2.0pm |
0.02/cm |
HF- |
NIR |
900 - |
20 nm |
2.0pm |
0.02/cm |
HF- |
VIS |
Click for details |
532nm +/- |
13:00:00 |
0.04/cm |

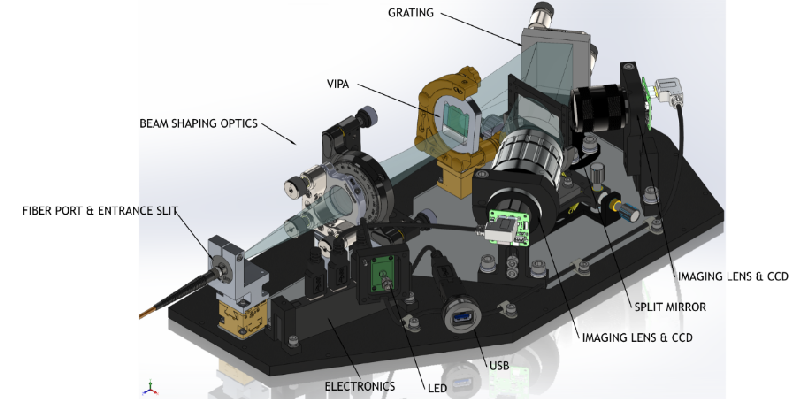

Light enters the HyperFine Spectrometer though a fiber. A VIPA etalon, manufactured using LightMachinery's proprietary fluid jet polishing technology, is used to produce very high dispersion in the vertical axis with sub picometer resolution. This is followed by a conventional grating to disperse overlapping orders in the horizontal direction and produce a 2D spectrum of the input light. LightMachinery software unwraps the spectrum to produce an ultra high resolution wavelength spectrum of the input light. A secondary camera provides a wide wavelength range, lower resolution view of the spectrum. |
Technology |
Datasheets |
Manuals |
Video Links |
Page Links |
Technical Papers |
Software |
The new SpectraLoK software is designed to be a reliable, feature packed interface for setting up your LightMachinery spectrometer, viewing spectra and organizing your data. The SpectraLoK Software, includes a short cut to the experimental virtual camera for partial use without a spectrometer. |
