Operating Wavelength Range1: 1480 to 1620 nm or 1280 to 1340 nm

Analog Bandwidth2: 1 MHz

Sampling Rate: 4 MSamples/s max.

SOP Uncertainty: ±0.25° (after user calibration, input > -25 dBm)

DOP Uncertainty: ±2% (using built-in calibration, input > -25 dBm)

                               ±0.5% (after user calibration, input > -25 dBm)

PER Measurement Range: 0 to 40 dB (input > -25 dBm)

PER Resolution: 0.1 dB

Insertion Loss: 1.2 dB max. (at center wavelength)

Return Loss: 55 dB (APC connector), 45 dB (PC connector)

PDL: < 0.25 dB

PMD: < 0.1 ps

Remote Head Aperture: 2.5 mm

Operating Power Range: -35 to +10 dBm

Optical Power Uncertainty: ± 0.25 dB (input > -25 dBm)

Optical Power Damage Threshold: 300 mW

Operating Temperature: 0 °C to 40 °C

Storage Temperature: -20 °C to 60 °C

Front Panel Display: Graphic OLED

Communication Interfaces: High Speed USB 2.0 (30 MB/s data rate) for PolaView software)

                                RS-232, GPIB, Ethernet for remote control

Analog Output: 0 to 5V (user configurable)

                    Monitor voltage for DOP, S1, S2, S3, or power

Electrical Power Supply: 100-240 VAC, 50-60 Hz

Software: PolaView™ (included)

Dimensions: 2U 19" half rack 14 (L) x 8.5 (W) x 3.5 (H)

Notes

Unless otherwise noted, specifications listed in table apply for standard fiber-coupled configurations with 1480 - 1620nm or 1280-1340nm operation at 23±5°C

1. Other wavelengths available on request.
2. For input power > -10 dBm. At low power levels, bandwidth may change due to AGC

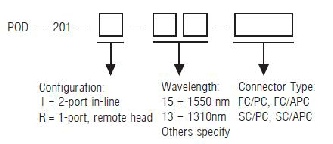

POD-201-I-15-FC/APC

In-line Polarimeter. Wavelength Range: 1480 to 1620 nm. FC/APC connectors (Other connector types available).

POD-201-I-13-FC/APC

In-line Polarimeter. Wavelength Range: 1280 to 1340 nm. FC/APC connectors (Other connector types available).
