PolaRITE™ III

The MPC-3x and 4x are three and four channel all fiber polarization controllers packaged in a low profile 0.63 inch high enclosure suitable for mounting on a PCB.

The all fiber design is inherently low loss and has minimal activation loss. Operation is stable over a wide range of temperatures (-25 to 80 degrees Celsius). The device is controlled by analog control voltages.

.

Features

• OEM packaging
• All fiber design
• No intrinsic insertion loss or back reflection



Applications

• Polarization stabilization
• Compensate PMD in fiber sensing systems





Specifications

• Operating Wavelength: 1260 to 1650 nm standard, others specify
• Insertion Loss (Intrinsic):  0.05 dB
• Return Loss:  > 65 dB

• Rise and Fall Time 1: < 30 µs
• Vp at DC (at 23°C): < 35 Volts @ 1550nm
• Activation Loss (0 - 150 VDC applied to all axes): < 0.01 dB (P grade), 0.05 dB (A grade)
• Polarization Mode Dispersion: others available)
• Electrical Interface: 8 pin 0.03 inch square, with 0.098 inch pitch
• Dimensions
• 3 Axis Version: 2.58” × 0.80” × 0.63”
• 4 Axis Version: 3.27” × 0.80” × 0.63”

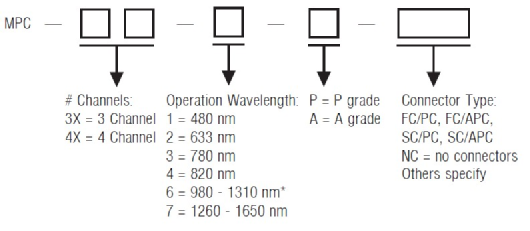

• Note:

Values are referenced without connectors 1. 10 to 90% transition for a voltage change of Vp,
