Manual Configuration
Tunable Fiber Lasers of WLTL-
Each of the elements is configurable to specific requirements, which leaves abundant options to implement variations of tuning range and optical output power.
The wavelength tuning is achieved by adjusting manually a differential micrometer head. Pl ug & play, wide tuning range and availability over X -
Electric Configuration
Tunable Fiber Lasers of WLTL -
Each of the elements is configurable to specific requirements, which leaves abundant options to implement variations of tuni ng range and optical output power.
Wavelength tuning is achieved by a micro motor controlled with a PC through a USB interface . F ast set up, small foot print, fast sweep , wide tuning range and availability ove r X -
Tuneable Filter Laser
Features |
Applications |
Manual
Electric
|
|

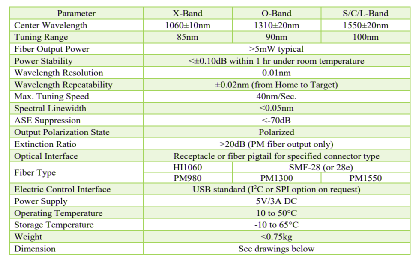

Typical Specifications of Tunable Fiber Laser (WLTF-
Specifications |

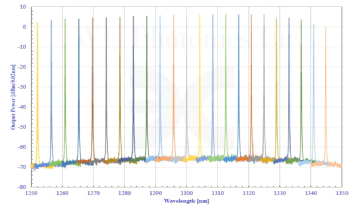

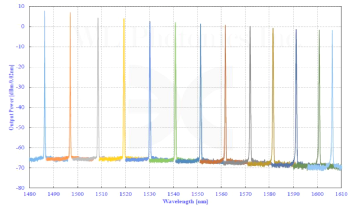

Output Line of X-

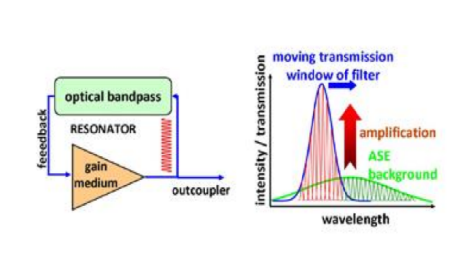

Technology |
Versions |
Ordering Information Part Number: WLTL- A. Version type: A=100 for manual version and A=200 for electric version B. Center wavelength in nanometer: 1060 is for 1060nm (X- C. Fiber type of output: SM is for single mode fiber and PM is for polarization maintaining fiber. D. Pigtail cable diameter in millimeter: 0.25 is for 250µm OD buffer fiber, 0.9 is for 900µm OD loose tube and 3.0 is for 3.0mm OD cable (only existing for pigtail output). E. Pigtail length in meter: 0.5 is for 0.5m long and 1.0 is for 1M long (only existing for pigtail output). F. Connector type of either pigtail termination or receptacle adapter, such as FC/APC, FC/UPC SC/APC or LU/UPC and 00 is for no connector. G. Electric interface (electric version only): such as USB, I2C or SPI. Example 1: WLTL-
Example 2: WLTL-
Example 3: WLTL-
|
