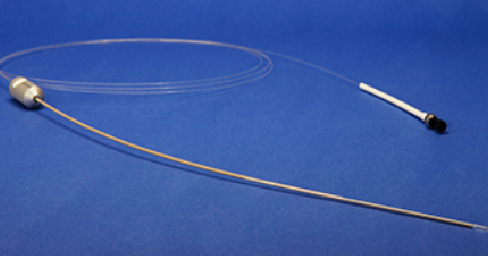

Introduction

• Fiber core diameters
• 200 µm / 400 µm / 600 µm / 800 µm / 1000 µm

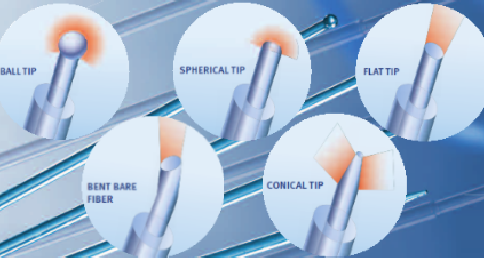

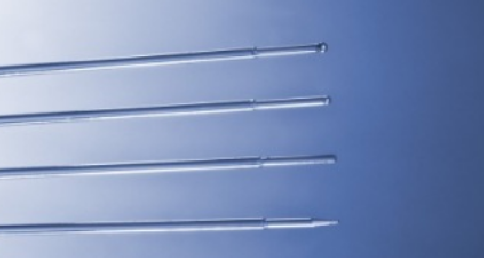

• Fiber ends
• Flat Tip
• Conical Tip
• Ball Tip
• Orb Tip
• Spherical Tip
• Handpieces
• To customer-requested design
• Taper Bare Fibres with a core ratio from 2:1.

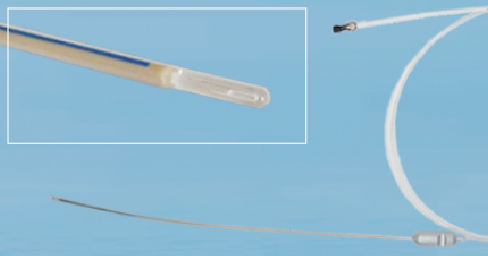

Introduction

• Fiber core diameters
• 400 µm / 600 µm
• Applications diameter
• 0.98 mm and 1.6 mm

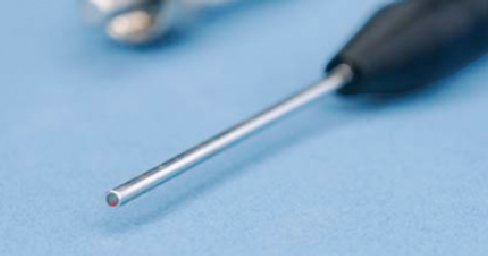

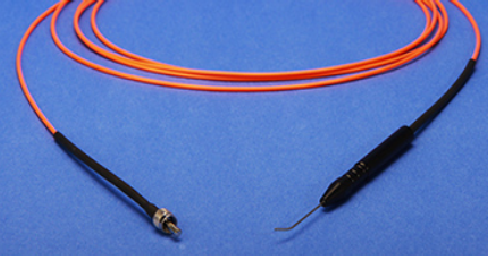

Introduction

• Fiber core diameter
• 200 µm
• Application diameters
• 20 Gauge / 23 Gauge / 25 Gauge
• Fiber ends
• Handpiece with stainless-steel needle (straight or bent)

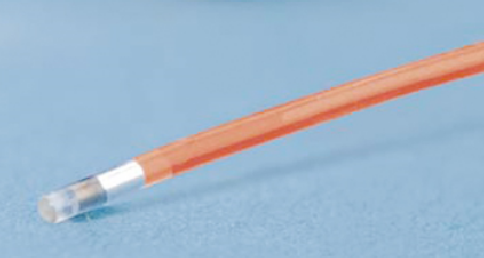

Introduction

• Fibre diameter
• Core: 600 µm, outer diameter: 1300 µm
• Fibre tip
• Polished conically, outer diameter 1.8 mm
• Emission pattern
• Forward directed cone
• SMA 905 connector
• Length: 2.5 m

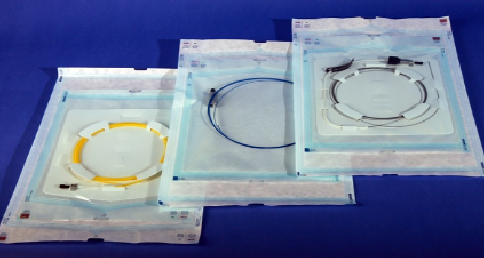

• ETO-sterilised
• Double packed in sterile pouches
• Up to 5 years sterile shelf life

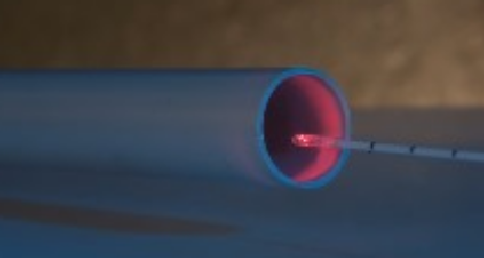

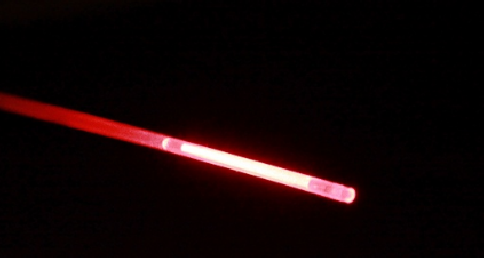

Introduction

• Fibre diameter
• Core: 400 µm, outer diameter: 900 µm
• Fibre tip
• Automatically rounded, short design
• Outer diameter 1.0 mm
• Emission pattern
• Radial emission 360°
• SMA 905 connector
• Length: 2.5 m
• ETO-sterilised
• Double packed in sterile pouches
• Up to 5 years sterile shelf life

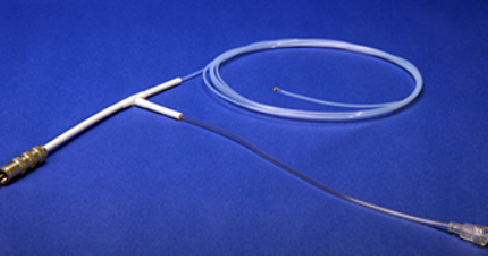

Introduction

• Fibre core diameters
• 600 µm
• Application diameters
• 1.8 mm and 2.1 mm
• Fibre ends
• Quartz tip with nozzle

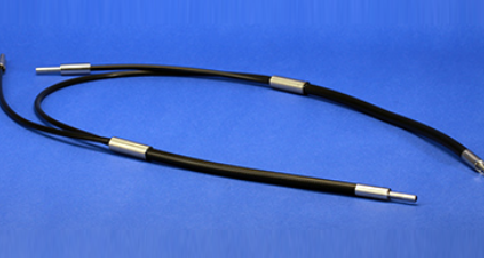

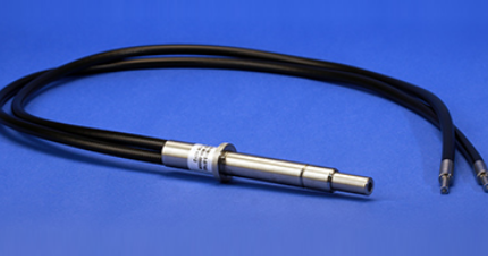

Introduction

• Available in different geometries.
• Standard fibre bundles: - designs include
• round to round
• round to rectangular
• rectangular to rectangular
• Sorted fibre bundles:
• Individual fibre mixing ratios ensure optimum light distribution and extremely good illumination.
• In some products e.g. multi-arm fibre bundles, homogenous light effects can be achieve

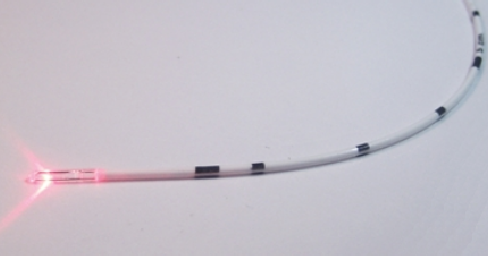

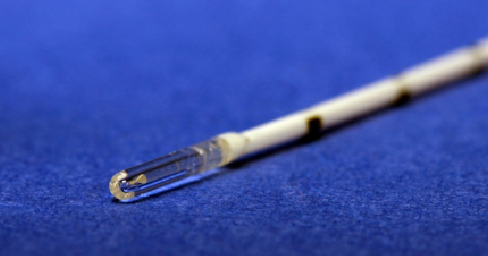

Introduction

• Fiber core diameter
• Saturn: 600 µm
• Saturn Slight: 400µm
• Applications diameter
• Saturn: 1.8mm
• Saturn Slight: 0.98mm Fiber ends
• Fiber ends
• Quartz dome with emission of 360° Flat Tip

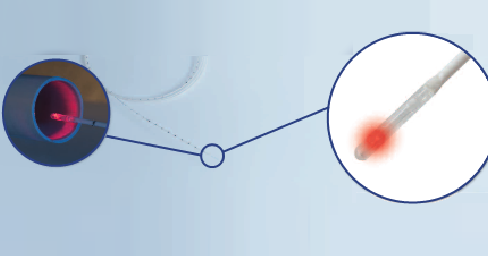

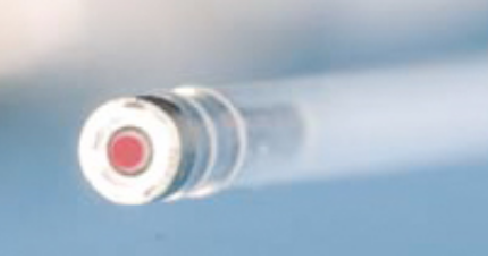

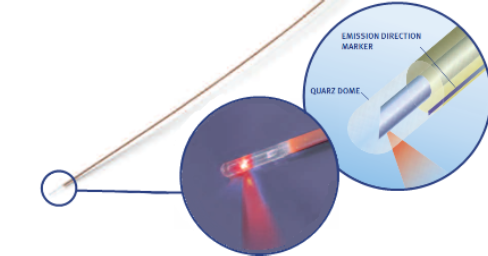

Introduction

• Fiber core diameters
• 600 µm
• Application diameters
• 1,8 mm and 2,0 mm
• Fibre ends
• quartz dome with emission of approx. 90°
