Introduction

Thanks to its different technologies, mechanical and optical interfaces, the

E-2000™ fiber optic connector family can cover the most standard and customized requirements in response to the increasingly customer demands.

Constant innovation in the field of fiber optics has created demand for products with ever increasing performance requirements. Diamond has responded to this challenge and expanded the E-2000™ connector system to address these needs throughout all market segments.

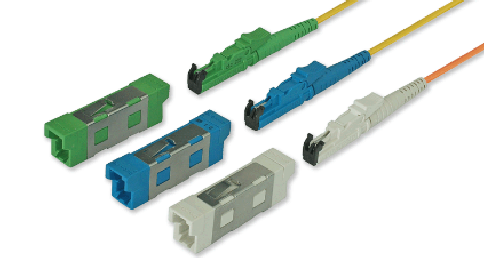

The E-2000™ Simplex offers unparalleled 0.1 dB maximum insertion loss random mating, exceptional repeatability,while maintaining the already well established, superior features of the E-2000™ connector family.

Introduction

Thanks to its different technologies, mechanical and optical interfaces, the

E-2000™ fiber optic connector family can cover the most standard and customized requirements in response to the increasingly customer demands.

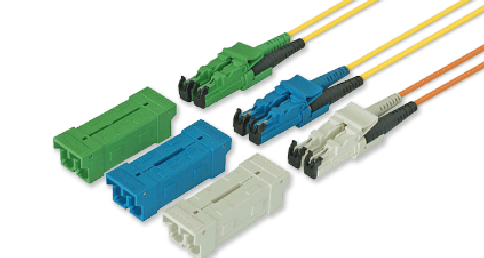

The E-2000™ COMPACT DUPLEX combines the familiarity of the RJ45 design and the optical performances of the E-2000™ simplex connector. It is based on components of the E-2000™ simplex version and is joined by a simple clip-bridge and a widened thumb-latch.

The E-2000™ COMPACT is the ideal solution for applications where an increasing number of cabling installations is required, typically to support multimedia environments including voice, data and image transmission.

The color and mechanical keying have the same identification as those of the E-2000™ Simplex connector.

Introduction

Thanks to its different technologies, mechanical and optical interfaces, the

E-2000™ fiber optic connector family can cover the most standard and customized requirements in response to the increasingly customer demands.

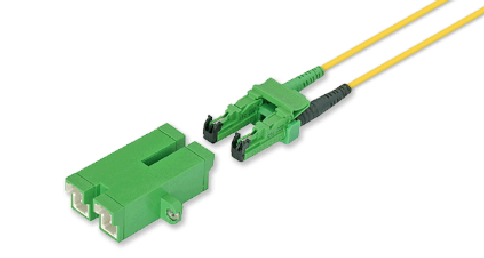

The E-2000™ COMPACT DUPLEX combines the familiarity of the RJ45 design and the optical performances of the E-2000™ simplex connector. It is based on components of the E-2000™ simplex version and is joined by a simple clip-bridge and a widened thumb-latch.

The E-2000™ COMPACT is the ideal solution for applications where an increasing number of cabling installations is required, typically to support multimedia environments including voice, data and image transmission.

The color and mechanical keying have the same identification as those of the E-2000™ Simplex connector.

Introduction

Thanks to its different technologies, mechanical and optical interfaces, the

E-2000™ fiber optic connector family can cover the most standard and customized requirements in response to the increasingly customer demands.

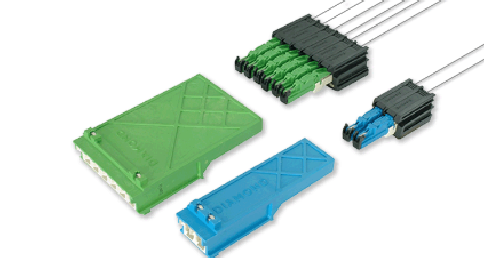

The E-2000™ Backplane combines the advantages of the E-2000™ SYSTEM and an optimal guiding mechanism for secure backplane connection. When mated, the PCB connector is retained in the mating adapter eliminating all stress on the PC Board.

It uses the common components of the E-2000™ Simplex version which are joined by a simple clip-bridge which includes a radial, angular and longitudinal compensation. Clip bridges are available for 2 and 6 connectors.  The E-2000™ Backplane offers the same optical performances as the E-2000™ simplex connector. The adapters can be easily mounted into the distribution panel.

Introduction

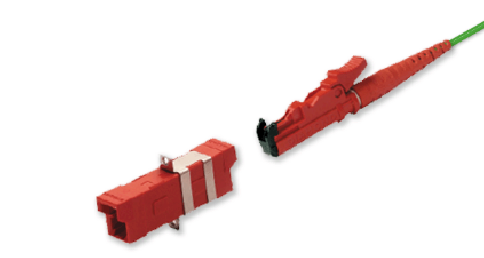

Diamond E-2000™ PS connector is designed for high power applications up to 6 Watts optical power for SM fibers. This has been developed to support the continuous rise of higher bitrates and longer transmission distances within DWDM technology.

Diamond PS connectors are based on contacted expanded beam technology; where a section of graded index fiber is spliced as a collimating lens, which enlarges the beam diameter and reduces power density at the connector interface. Using Diamond Active Core Alignment (ACA) technology, we can achieve unrivaled low IL performance

for the PS technology by aligning the fiber exit angle instead of the core eccentricity as Diamond usually does on SM fiber.  This technology is applicable to most connectors interfaces, but due to safety issues Diamond suggests to use it on E-2000™ and F-3000™ connectors with integrated metal protection caps and shutters.E-2000™ PS connectors are available as simplex terminated connectors and backplane 2-6 channels.

Introduction

Thanks to its different technologies, mechanical and optical interfaces, the

E-2000™ fiber optic connector family can cover the most standard and customized requirements in response to the increasingly customer demands.

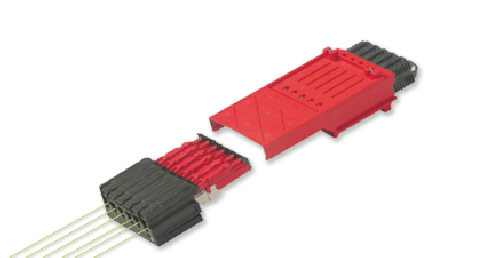

The E-2000™ PS Backplane combines the advantages of the E-2000™ connector system and an optimized guiding mechanism for secure backplane connection without mechanical stresses on the PC board. The basic components are single connectors mounted on special bridges available for 6 channels.

The E-2000™ backplane offers: active push-pull retention - backplane modules designed respecting IEC 1070-4-100 for metric backplane system - high mating stability and repeatability.
