Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area. If you cannot find what you are looking for from the information below, please contact us directly.

SYSTEM CONTROLLER ASC-1

SYSTEM CONTROLLERS

ASC - SYSTEM CONTROLLER

An ASC system controller is the central device in a laser system. It controls scan heads, lasers, sensors, actuators and other peripherals.

A combination of highly configurable interfaces and processing units responds in real-time to external signals. That way the ASC system controller handles optimized synchronization of all critical devices and signals necessary in modern laser systems.

The ASC system controller has full stand alone functionality. No host is necessary to operate it. However the ASC system controller provides remote diagnosis, management and parametrization via Ethernet TCP/IP.

The InScript software is a powerful tool in order to create process sequences and for system management.

Alternatively the ControllerLib, a C/C++ based library and DLL, can be used in order to control many of the ASC system controller's aspects from within your own applications.

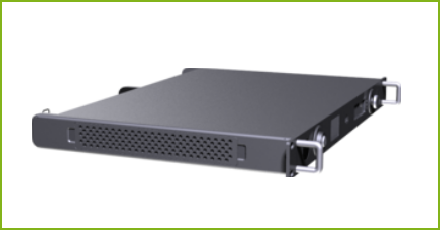

ASC-1

Features

Essential system controller functionality in a slim housing
Controls 1 laser
Controls and powers 2 ARGES scan heads

ASC-1

ASC - data sheet (includes 3D models) 3D model - ASC-1 (zipped STEP file) ASC - manual - general purpose, laser & PLC ControllerLib - description ASC - manual
