In a Nutshell
- Motorised zoom beam expander
- Motor adapter incorporated to drive the expander
- Magnification setting control

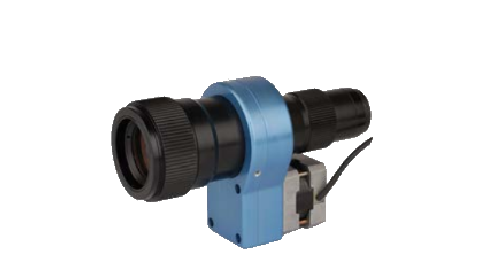

Motorised Zoom Beam Expander |
In a Nutshell
- EXP series can be modified with remote divergence. control
- The original optical specifications are maintained.
- High resolution of 2400 steps on 6 mm travel.
Motorised Fixed Magnification Beam Expander
|
In a Nutshell
- The use of aspheric lenses in optical systems, focusing Ideal for restricted space requirements
- Consist of only 2 lenses
- Provide the same optical performance as the standard series.
- Overall length only 44.7 mm.
- Optical and mechanical specifications remain compatible to standard S6EXP version.

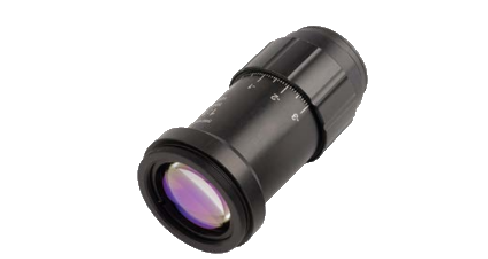

Compact Fixed Magnification Beam Expander |
In a Nutshell
- Galilean design for compactness .
- Utilises an air spaced two lens system to minimize aberrations and reach diffraction limited performance.
- Easily adjustable divergence of the expanded beam
Fixed Magnification Beam Expander
|
In a Nutshell
- Power Zoom
- Fully motorized high precision systems
- industry-proven systems
- Outstanding repeatability and reliability
- Divergence and magnification adjustment.
Power Zoom Motorised Beam Expander
|
In a Nutshell

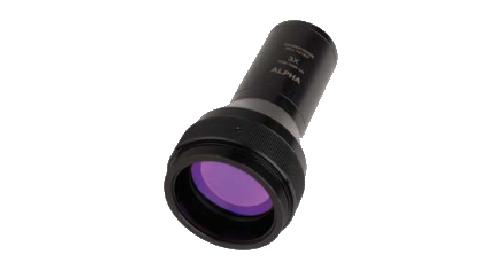

- ALPHA“ (Absorption Low Plus High Aperture)
- Specially designed for high power lasers emitting from 1030 nm to 1090 nm.
- To reduce thermal lensing, all beam expanders
- Are Fused Silica
- Are Highly corrected two-lens systems to keep the number of surfaces to a minimum.
- Use Low absorption coatings
- Easy adjustment of output beam divergence.

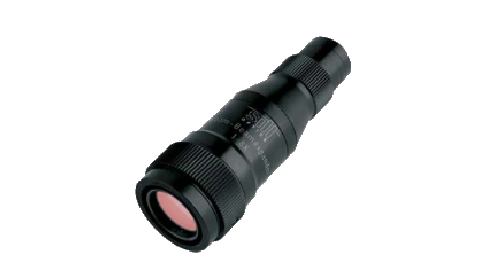

In a Nutshell
- Highly corrected 4-lens systems.
- Full divergence adjustment
- Magnification adjustment
- Independent magnification and divergence settings
- Total length of the beam expanders remains constant during zooming and/or divergence setting.
