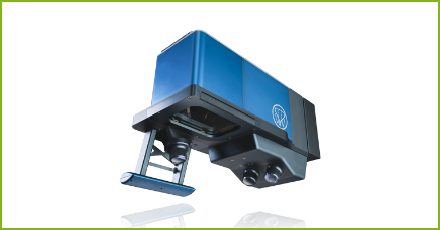

3D Scan Head

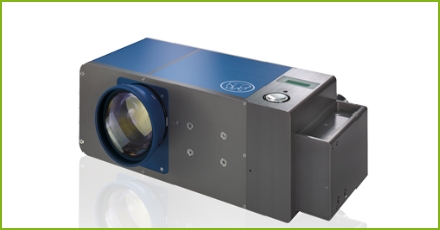

Elephant

3D Scan Head

Elephant

Features

• 3D scan head for remote welding and rapid prototyping with multi-mode fiber lasers or cutting, fine welding and rapid prototyping with single-mode fiber lasers
• fast Z-axis; focus translator substitutes expensive or unavailable flat field lens for large apertures
• fiber coupling: Optoskand QBH, Type D, clamp for collimated fiber output Ø 30 o 35 mm, or others on request
• fiber collimator with 80, 100, 120, 150, 170 or 200 mm focal length
• diffraction limited optical design
• transmission > 97 % for high power
• open "optical interface" for process monitoring
• aperture 24, 36 or 50 mm
• for wavelength 1020 – 1080 nm
• drawer for fast exchange of protective glass

3D Scan Head

Elephant

3D Scan Head

Elephant

Features

• 3D scan head for remote welding and rapid prototyping with multi-mode fiber lasers or cutting, fine welding and rapid prototyping with single-mode fiber lasers
• fast Z-axis; focus translator substitutes expensive or unavailable flat field lens for large apertures
• fiber coupling: Optoskand QBH, Type D, clamp for collimated fiber output Ø 30 o 35 mm, or others on request
• fiber collimator with 80, 100, 120, 150, 170 or 200 mm focal length
• diffraction limited optical design
• transmission > 97 % for high power
• open "optical interface" for process monitoring
• aperture 24, 36 or 50 mm
• for wavelength 1020 – 1080 nm

drawer for fast exchange of protective glass

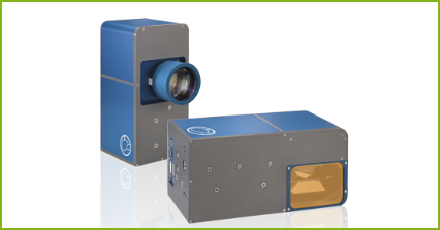

3D Scan Head

3D Scan Head

Features

• 3D scan head for remote welding and rapid prototyping with multi-mode fiber lasers or cutting, fine welding and rapid prototyping with single-mode fiber lasers
• fast Z-axis; focus translator substitutes expensive or unavailable flat field lens for large apertures
• fiber coupling: Optoskand QBH, Type D, clamp for collimated fiber output Ø 30 o 35 mm, or others on request
• fiber collimator with 80, 100, 120, 150, 170 or 200 mm focal length
• diffraction limited optical design
• transmission > 97 % for high power
• open "optical interface" for process monitoring
• aperture 24, 36 or 50 mm
• for wavelength 1020 – 1080 nm
• drawer for fast exchange of protective glass
