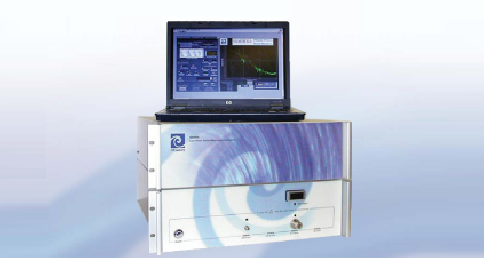

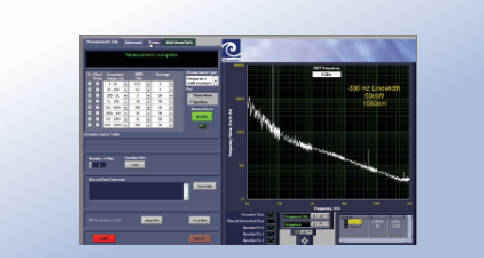

Automated Laser Linewidth & Frequency Noise Measurement System
Ultra-Narrow/Low Linewidth/ Frequency Noise Measurement
Fast Real-Time Measurement
Fully Automated
No Low Noise Reference Source Required
User Friendly Interface
Simple PC-based Operation
Standard 1U x 19” Rack System
Customisable Configurations, Upgrades & Options
Ultra-High Performance Level

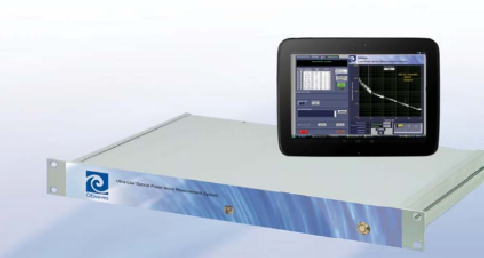

Automated Phase Noise Measurement System
Extended input wavelength range
RIN Measurements
Extended Input Power Range
Frequency Range Options & Upgrades

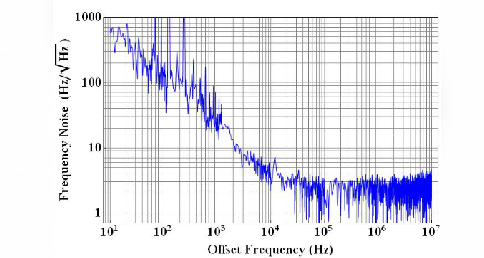

Laser Linewidth & Frequency Noise Measurement
Introduction

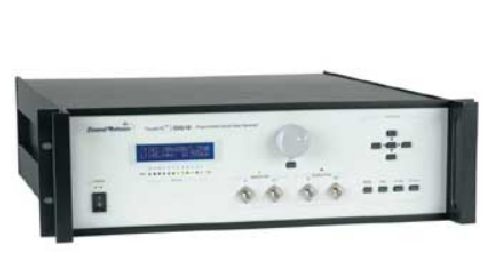

Programmable Optical Delay Generator
High resolution
Large delay range
Low insertion loss
Fast delay switching
Low delay dependent loss
Compact

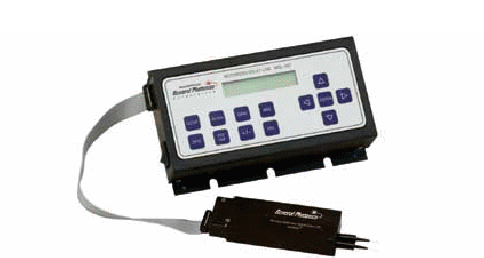

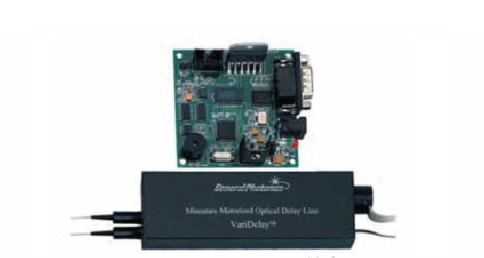

Motorized Variable Optical Delay Line
Compact size
High resolution
Low backlash
Low insertion loss
High stability
Long delay range
Time Delay Management
Introduction

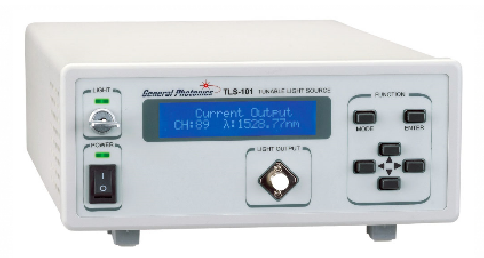

The TLS-101 is a compact tunable laser source. A C-band and an L-band version are available. Each version can be step-tuned with a resolution of 50 GHz in less than 20 ms. An internal wavelength locker assures that the wavelength of the output light is exactly on the ITU grid of the DWDM channels.
Tuneable Laser Sources
Introduction
Benchtop or OEM configuration
Polarization stabilised output
Wide spectral range (up to 150 nm)
Fast sweep speed (up to 16 kHz)
High output power (20 mW)
Sweep start and end trigger (TTL)
Reference wavelength triggers
Built-in VOA
Power monitoring function
RS-232 interface
Notes:
With VOA/sweep monitor option
Polarisation Stabilised Wavelength-Swept Laser
Introduction
The SLD-101S is a highly stable superluminescent light source designed specifically for OCT, sensor and test & measurement applications. During operation, both the current and temperature are accurately controlled for superb power and spectral stabilities. The output power and diode temperature are stabilized to 0.02dB and 0.05°C respectively.
