Solid State Visible and Near IR Solid State Mid IR

Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area. If you cannot find what you are looking for from the information below, please contact us directly.

SOLID STATE LASERS MID-IR

SOLID STATE LASERS

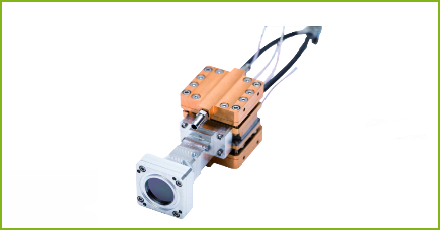

Diode Pumped Module - 2W

Diode Pumped Module - 2W

DPM-2

Features

2 Watts
Mid IR wavelengths
Er:YAG 2940nm
Er:YSGG 2796nm
Er:YLF 2810nm
Tm:YAG 2020nm
Ultra-Stable High Power Mid-IR Laser
Highly Efficient Diode Pumping
Ideal for Fiber Coupling into ~ 100 µm
No High-Voltage - Battery Operation Possible
Passively Cooled

3mikron™

3mikron™ is the technology platform for compact, efficient, fast and reliable lasers for a wide range of potential applications in the field of medical and industrial engineering. It enables a new generation of innovative mid-IR lasers based on diode-pumped solid-state technology, operating at wavelengths of 2 to 3 µm using different types of laser crystals (e.g. Er:YAG, Er:YSGG, Tm:YAG, Er:YLF).

DPM-2

The world‘s most powerful diode-pumped Er:YAG laser module in this size is available for industrial and medical applications. The average output power of up to 2 W and repetition rates of up to 2 kHz allows controlled and at the same time precise treatments.

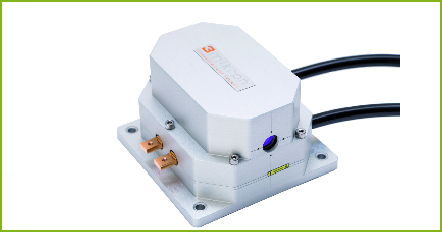

DPM-10

The world‘s most powerful diode-pumped Er:YSGG laser module in this size is available for industrial and medical applications. The average output power of 10 W and repetition rates of up to 1 kHz allows controlled and at the same time precise

treatments.

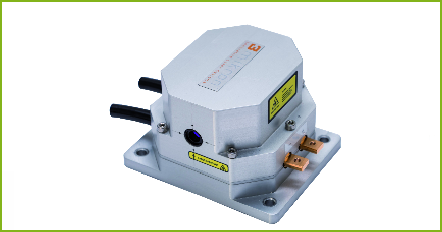

DPM-15

The world‘s most powerful diode-pumped Er:YAG laser module in this size is available for industrial and medical applications. The average output power of up to 15 W and repetition rates of up to 2 kHz allows controlled and at the same time precise treatments.

DPM-20

The world‘s most powerful diode-pumped Tm:YAG laser module in this size is available for industrial and medical applications. The average output power of up to 20 W and repetition rates of up to 2 kHz allows controlled and at the same time precise treatments.

DPM-30

The world‘s most powerful diode-pumped Er:YAG laser module is available for industrial and medical applications. The average output power of up to 30 W and repetition rates of up to 2 kHz allows controlled and at the same time precise treatments.

DPM-Q

The world‘s most powerful q-switched Er:YLF laser module is available for industrial and medical applications. The pulse energy of up to 25 mJ in nanosecond pulses allows the precise treatment of the hardest materials.

Applications

General

Material Processing (Drilling, Cutting, Melting, Welding, Evaporation)
MALDI
OH Detection
Rock analysis
Holograms
Security Labels
Range Finding
Laser Radar
Free-Space Optical Communication
Emulation of Heat Sources

Medical

Precise treatments (cutting width <100 µm)
Controllable thermal impact by laser parameters
Cold ablation (cut like a scalpel)
Hot ablation (coagulation) by stacked pulses
Limited lateral thermal damage
No unwanted vibrations to patient
Short operation time
Fast healing
Combines benefits of traditional Er:YAG and CO2 lasers
Optimised for soft and hard tissue treatment
