Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area. If you cannot find what you are looking for from the information below, please contact us directly.

SOLID STATE LASERS VISIBLE & NEAR IR

SOLID STATE LASERS

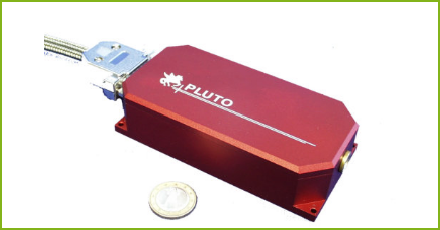

PLUTO - DPSS at 532 nm

PLUTO - DPSS at 532 nm

Features

Power - 400mW & 800mW
Ultra compact housing
120 x 60 x 30 mm3
Modulation (via 0 - 5 V)
DC to 50 kHz (-3 dB)
Low Order Multimode Beamprofile - M2 < 1.8
Beam Data
Divergence < 1.0 mrad
Diameter at aperture < 2.0 mm
Spot or Line Optics
Direct Beam or Fibre Coupled
Customised and Tailored Solutions

Pegasus Lasersysteme

Diode pumped solid state lasers, particularly frequency doubled lasers have been part of Pegasus product portfolio from the earliest days.

The development and manufacture of these systems continues, with the lasers being offered in both in OEM and table top configurations. Some of the latest advances include compact sources and higher powers, for instance in excess of 4 Watts in the green at 532 nm.

The laser systems are currently being used in a wide variety of different measurement applications, including:

High speed triangulation
Long range alignment
Scanning
Flow visualisation
Spectroscopy
TiSa pumping
Digital printing
Laser display
Fluorescence excitation
Optical pumping

All the systems are provided either with direct beam or fibre coupled.

PLUTO - DPSS 532nm Datasheet PLUTO F - DPSS 532nm Datasheet MICRO - DPSS 532nm Datasheet THOR - DPSS 532nm Datasheet
