WIDEBAND TUNEABLE FILTERS

OPTICAL FILTERS

WIDEBAND TUNEABLE FILTERS

Wideband Tunable Filters of WLTF-WM- & WLTF-WE- series are built based on free-space optical Fourier transformation combing with diffraction grating. Unique optics design produces an access of selecting spatially desired spectral ingredients of input light and offers flattop transmission spectral shape with flexible bandwidth and unprecedented low insertion loss and polarization dependent loss (PDL).

Precise tuning mechanism enables filters to provide high wavelength resolution and excellent wavelength repeatability. Both of manual and electric version filters are available over X-, O-, S-, C-, & L-bands. Wavelength-tuning is actuated by either a precise micrometer driver or a built-in micro motor connected to a PC through a USB (I²C or SPI) interface in which actuation is monitored by a built-in encoder and controlled dynamically in a closed-loop. Motor control software is provided.

Applications

ASE noise suppression
CWDM channel filtering
Pulse Shaping
Signal filtering

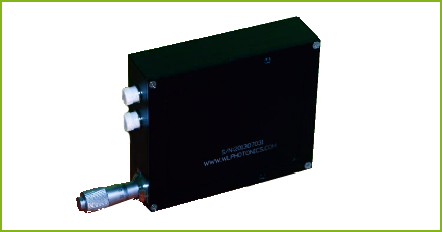

Wideband Tuneable Filters

Wideband Tuneable Filters

Key Features

Unprecedented low insertion loss and polarization-dependent loss (PDL)
Flat-top transmission spectral shape
Sharp roll-off edge of transmission
High power handling
Up to 120nm wavelength tuning range
Up to tuning range bandwidth
Spectral range available over X-, O-, S-, C- and L- bands
High out-band suppression
Manual or Electrical versions
