DETAILS & DOWNLOADS

1.0 micron Fibre Laser Components 1.5 micron Fibre Laser Components 2.0 micron Fibre Laser Components

Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area.  If you cannot find what you are looking for from the information below, please contact us directly.


  2.0 MICRON FIBRE LASER COMPONENTS

  FIBRE LASER COMPONENTS

2000nm Pigtailed PD


Features

  • Specially designed for 2000nm
  • Fibre Lasers
  • Amplifiers
  • Lab Research


  • Characterized by
  • High responsivity
  • Low dark current
  • Good temperature performance
  • High power handling
  • Excellent environmental stability & reliability


2000nm Pigtailed PD




2μm Pigtailed PD
2 W 2μm Isolator, CW or Pulsed 2 W 2μm PM Isolator, CW or Pulsed 2μm Fused Tap Coupler 2μm PM Fused Tap Coupler 2μm Fused WDM (2000& 570, 2000&800) 2μm PM Fused WDM(2000&1570or800or650) 1570/2000 nm WDM, Filter Based 1570/2000 nm PM WDM, Filter Based 2μm In-Line Polarizer  2μm Polarization Beam Splitter/Combiner  2μm Isolator PBS/PBC, Single or Dual Stage 2 W 2μm Circulator, CW or Pulsed 2 W 2μm PM Circulator, CW or Pulsed 2μm Faraday Rotator Mirror PM Patchcord

2000nm Pigtailed PD

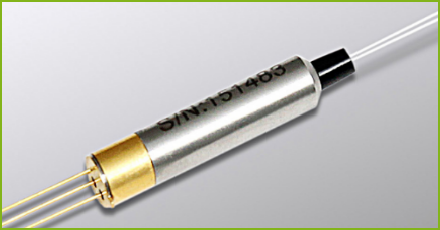

The 2 µm Fiber Pigtailed Photodiode is a coaxial package photo electrical component. It features high responsivity, low dark current and good temperature performance over a wide wavelength range.



2 W 2000nm Isolator, CW or Pulsed

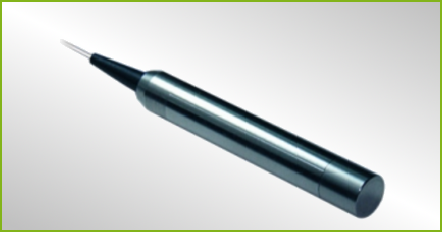

The 2 µm Polarization Insensitive Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device high power handling capability. The device is characterized  with high performance, high reliability. It is designed specially for 2 µm laser system.



2 W 2000nm PM Isolator, CW or Pulsed


The 2 µm Polarization Maintaining Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device high power handling capability. The device is characterized with high performance and high reliability. It was designed specially for 2 µm laser system.



2000nm Fused Tap Coupler


2000nm PM Fused Tap Coupler



2000nm Fused WDM (2000 & 1570, 2000 & 800)


The 2 µm Fused Wavelength Division Multiplexor combine or separate light at 1570 nm (800 nm) and 2000nm windows. They offer very low insertion loss and excellent environmental stability.



2000nm PM Fused WDM (2000 & 1570, 2000 & 800, 2000 & 650)


The Polarization Maintaining Fused Wavelength Division Multiplexor combine or separate light at different wavelengths. They offer very low insertion loss, high extinction ratio, and excellent environmental stability.



1570/2000nm WDM, Filter Based


The 2 µm Filter Wavelength Division Multiplexor series is based on environmentally stable thin-film filter technology. The devices combine or separate light at different wavelength in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating.



1570/2000nm PM WDM, Filter Based


The 2 µm Filter Wavelength Division Multiplexor series is based on environmentally stable thin film filter technology. The devices combine or separate light at different wavelength in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating.



2000nm In-Line Polarizer


The 2 µm In-line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instrumentations where high polarization extinction ratio is required.



2000nm Polarization Beam Splitter/Combiner


The 2 µm Polarization Beam Combiner/Splitter is a compact high performance lightwave component that combines two orthogonal polarization signals into one output fibre. The most common application is to combine the light of two pump lasers into one single fibre to double the pump power in EDFA or Raman Amplifier. The device can also be used as a beam splitter.



2000nm Isolator Polarization Beam Splitter/Combiner, Single or Dual Stage


The Isolator Polarization Beam Combiner/Splitter is a compact device which provides both polarization beam combining and optical isolation in one integrated component. The most common application is to combine the light of two pump lasers into one single fibre to double the pump power in EDFA or Raman Amplifier. IPBC/IPBS has extremely low insertion loss, and it can improve the amplifier performance.



2 W 2000nm Circulator, CW or Pulsed

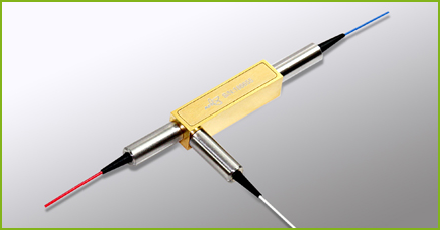

The 2 µm Polarization Insensitive Circulator is a high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3.



2 W 2000nm PM Circulator, CW or Pulsed


The 2 µm Fiber Optic Circulator is a high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3.



2000nm Faraday Rotator Mirror


The Faraday Mirror is a passive device that provides 90 degree rotation regarding to the polarization state of the input light. The FM offers excellent performance including the lowest possible insertion loss and environmental stability. It is used in EDFAs, fibre lasers and fibre instruments to minimize the polarization effect.



PM Patchcord


The PM Patchcord series has excellent environmental stability, high return loss, low insertion loss. It is ideal for PM amplifiers, fibre lasers and test instrumentation applications.
