  UNIVERSAL LED DRIVERS

   LED SOURCES

Manual & Analogue-Input Controlled Universal LED Driver with Current Display

Mightex’s SLB-1200-1 universal LED driver is designed for driving a broad range of LED light sources. The LED driver has two control modes:

• Manual Knob Control Mode: the output current can be adjusted manually; and
• Analogue Input Control Mode: the output current can be controlled via a 0~5V analogue input signal.

The control mode is set via a DIP switch, and the factory default setting is “Manual Knob Control Mode”. The driver also has a Maximum Current Setting DIP Switch, which allows user to set the maximum current to 350mA, 750mA or 1200mA, whichever applicable. The factory default setting is 350mA. When the Maximum Current Setting DIP Switch is set at a smaller value (e.g. 350mA), the LED driver has a finer resolution for the output current.

When the driver is set to “Analogue Input Control Mode”, the output current is proportional to the voltage of the analogue input signal.

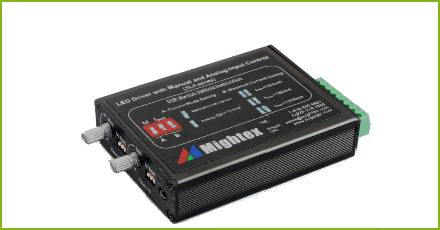

Two-Channel LED Drivers with Manual and Analogue-Input Controls

Mightex’s SLA-series two-channel universal LED drivers are designed to drive a broad range of LED light sources. These LED drivers have two control modes:

• Manual Knob Control Mode: the current output of each channel can be adjusted manually
• Analogue Input Control Mode: the current output of each channel can be controlled via 0~5V analogue input.

The control mode is set via a DIP switch, and the factory default setting is “Manual Knob Control Mode”. The drivers also have a Maximum Current Setting DIP Switch, which allows user to set the maximum current to different levels, in order to prevent LED damage due to overdriving. The factory default setting is 30mA for SLA-0100-2, and 350mA for both SLA-1000-2 and SLA-1200-2. When the Maximum Current Setting DIP Switch is set at a smaller value (e.g. 350mA), the LED driver has a finer resolution for the output current.

  When the driver is set to “Analogue Input Control Mode”, the output current is proportional to the voltage of the analogue input signal. The operational mode and the current limit of each channel can be set independently from each other.

Applications

• Machine vision
• Displays
• Microscopy
• Semiconductor equipment
• Testing instruments
• Medical instruments
• Lighting
