MULTICOLOUR VISIBLE DIODE LASERS
DIODE LASERS
To complement their standard single line diode lasers, PEGASUS have introduced an ultra compact series of multiline lasers covering the visible and near IR spectrum and providing premium performance.
These beam combined multiple lasers are provided in a single laser head and were originally developed for a number of key industrial , scientific and life science applications, where high power and multiple wavelengths were needed in an economical and compact package.
The compact geometries and coincident beams, as well as the facility for controlling all channels independently means that these units not only offer ease of integration and use but are inherently economical. This makes them the ideal solution when looking for premium performance and when replacing multiple single line lasers, all in a cost effective manner.
Applications
- Flow cytometry
- Fluorescence excitation
- TIRF illumination
- Laser Displays
- Machine Vision
- Triangulation
- Long Range Alignment
- Process Control
- Optical Pumping

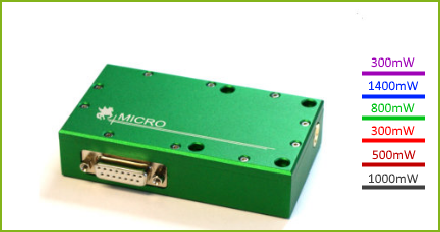

MICRO 2-
MICRO 2-
Features
- Run up to 2 different wavelengths simultaneously
- Standard Wavelengths
- 405, 450, 520, 638, 660 & 810 nm
- Analogue modulation > 200 kHz / channel
- Independent control of all channels
- Compact Laser and Driver
- Custom and Tailored Solutions

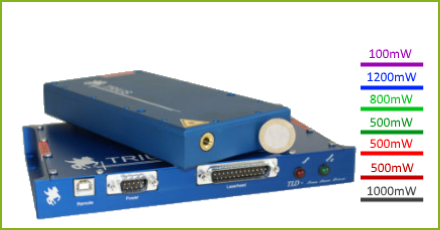

TRIUS 3-
TRIUS 3-
Features
- Run up to 3 different wavelengths simultaneously
- Standard Wavelengths
- 405, 450, 520, 532, 638, 660 & 810 nm
- 3 Colour Channels on same Optical Axis
- RGB Configuration as Standard
- Up to 1.5 Watts Multiline VIS
- Modulation > 200kHz / channel
- Independent control of all channels
- Compact Laser and Driver
- Custom and Tailored Solutions

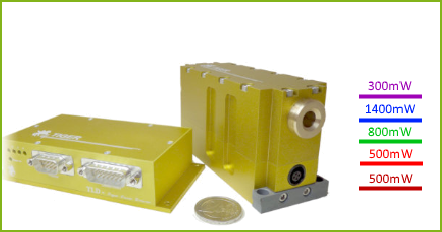

TIGER 4-
TIGER 4-
Features
- Run up to 4 different wavelengths simultaneously
- Standard Wavelengths
- 405, 450, 520, 638, 660 nm
- Ultra Compact MultiLine Laser
- RGB configuration as Standard
- Robust OEM Assembly
- Optional driver electronics
- Independent control of all channels
- Custom and Tailored Solutions

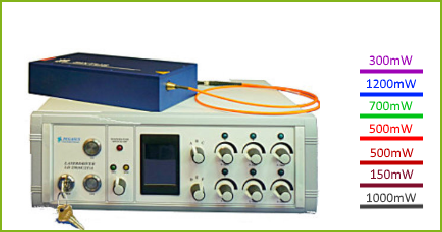

SIXTUS 6-
SIXTUS 6-
Features
- Run up to 6 different wavelengths simultaneously
- High power version with up to 3 wavelengths
- Standard Wavelengths
- 405, 450, 473, 488, 515, 520, 638, 650, 660,
670, 685, 785, 810 nm
- SM & MM
- Analogue modulation >200 kHz / channel
- Compact Laser and Driver
- Custom and Tailored Solutions
