SEGMENTED PHOTODIODES

SILICON POSITION SENSING DETECTORS

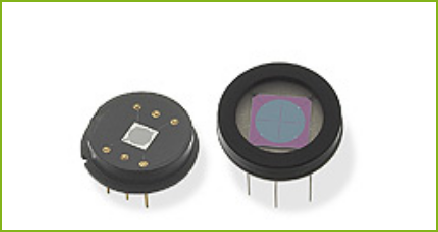

The SPOT Series are common substrate photodetectors segmented into either two (2) or four (4) separate active areas. They are available with either a 0.005" or 0.004" well defined gap between the adjacent elements resulting in high response uniformity between the elements. The SPOT series are ideal for very accurate nulling or centering applications. Position information can be obtained when the light spot diameter is larger than the spacing between the cells.

Spectral response range is from 350 - 100 nm. Notch or bandpass filters can be added to achieve specific spectral responses. These detectors exhibit excellent stability over time and temperature, fast response times necessary for high speed or pulse operation, and position resolutions of better than 0.1 µm. Maximum recommended power density is 10 mW / cm2 and typical uniformity of response for a 1 mm diameter spot is ±2%. The circuit on the opposite page represents a typical biasing and detection circuit set up for both bi-cells and quad-cells. For position calculations and further details, refer to "Photodiode Characteristics" section of the catalogue.

Applications

Pulse Detectors
Optical Communications
Bar Code Readers
Optical Remote Control
Medical Equipment
High Speed Photometry

Segmented Photodiodes

Segmented Photodiodes

Features

Segmented and Lateral Effect PSD
Active Area available
1-Dimensional or
2-Dimensional
Available in a variety of
active area sizes
packaging to suit wide-ranging applications.
Segmented Detector is typically used in beam nulling application
Lateral Effect PSDs are most suited to measure wide lateral displacement.

Segmented Photodiodes
