SC FUSION

FUSION FAMILY

SC FUSION

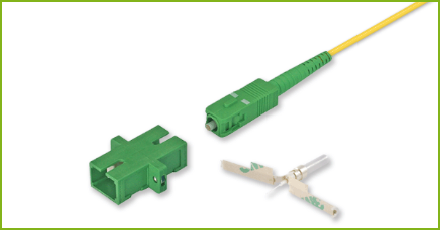

The SC FUSION allows you to quickly and easily make field terminations with the performance you expect from Diamond-quality SC connectors. The key to this system is DIAMOND’s advanced "crocodile alberino" 1.25mm fusion field ferrule assembly. The ferrule assembly consists of a factory-terminated fiber endface, fiber stub, and integrated splice protection. The fiber endface is core-centered via Diamond’s well-known Active Core Alignment process and factory-polished to the company’s precise specifications. The SC FUSION is then field terminated via a low loss fusion splice using the new Diamond ZEUS D50 Fusion Field Termination Kit. The SC FUSION is available for SM and MM fiber (250µm, 600µm and 900µm) and cable (1.6-to 3.1 mm) in both 0° PC or 8° APC versions

SC Fusion Part Number List SC Fusion datasheet
