CCD Line Cameras USB Cameras

Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area. If you cannot find what you are looking for from the information below, please contact us directly.

CCD LINE CAMERAS

CAMERAS

CCD Line Cameras

Mightex high performance digital CCD, CMOS, and Line Scan cameras are designed for a wide variety of applications including: machine-vision; industrial process control; digital microscopy; optical spectroscopy and bio-medical imaging. With quality and affordability built in, these cameras are flexible to configure and robust and easy to use.

Available in two main configurations - board-mounted and enclosed, the cameras are feature packed and include built-in frame buffers, external trigger-in, strobe-out as well powerful camera engines that support multiple camera formats. With B&W and colour format options and resolutions up to 5MP, frame rates up to 600fps (resolution dependant) can be achieved.

Additionally, user-friendly GUI based application software and an SDK are provided as is a USB command set protocol for non-Windows based applications.

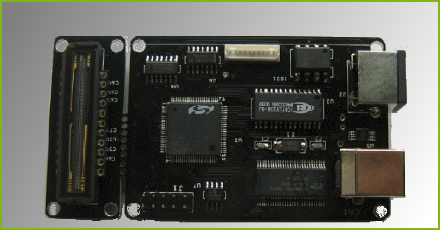

USB2.0 3648-Pixel 16-bit Board-Level

USB2.0 3648-Pixel 16-bit Board-Level

Features

USB 2.0 compatible
Board-level camera, ideal for OEM applications
No external power supply required
Optical integration time adjustable from 100µs to 6.5s
3648 pixel silicon linear CCD array
8µm x 200µm pixel size
16-Bit A/D converter for high intensity resolution
High scan rate (up to 138 scans/second)
External trigger capability
4 GPIOs
Full-featured SDK
Linux driver available
USB command set protocol for non-Windows based applications
LabVIEW support is provided
Demo graphical user interface
Compatible to Windows 2000XP or higher

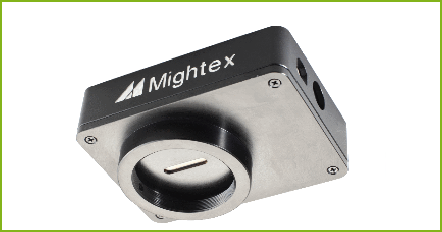

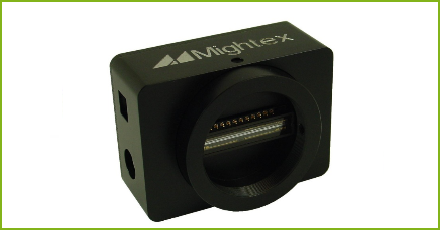

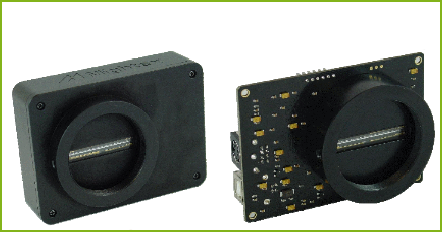

USB2.0 3648-Pixel 16-bit Enclosed USB2.0 1024-Pixel, 8/12-bit, 25,000 scans/s USB2.0 2048-Pixel 12-Bit, 3,300 scans/s Line Camera Accessories USB2.0 3648-Pixel 16-bit Board-Level
