1550nm PULSED LASER DIODE WITH INTEGRATED MICRO-LENS

HIGH POWER PULSED DIODE LASERS

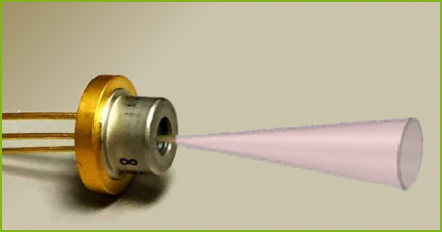

1550nm Pulsed Laser Diode with Integrated Micro Lens

The 1550nm pulsed laser offers a far field beam pattern with equivalent divergence values for both the Fast (Perpendicular) and the Slow (Parallel) Axes of emission. The adjusted Far Field pattern offers higher coupling efficiency into standard spherical lens systems. The laser/lens is hermetically sealed in a 9mm package that offers robust environmental survival capability for demanding applications such as field deployed range finders. This product is RoHS compliant.

Applications

Rangefinding
LIIDAR
Surveying

1550nm Diode with Integrated Micro Lens

1550nm Pulsed Laser Diode with Integrated Micro Lens

1550nm Pulsed Laser Diode with Integrated Micro Lens

Features

Integrated Micro Lens
Equivalent divergence values for both emission axes - Fast and Slow
Adjusted Far Field pattern offers higher coupling efficiency into standard spherical lens systems
Robust environmental survival capability for demanding applications such as field deployed range finders
RoHS compliant
