F-3000™ DUPLEX

F-3000™

F-3000™ DUPLEX

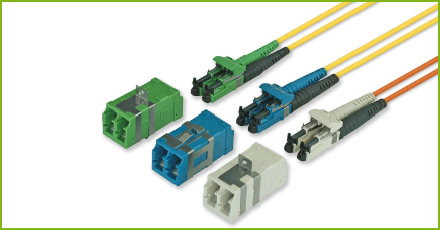

The F-3000™ is a small form factor fiber optic connector based onto 1.25 mm ferrule style. Diamond’s F-3000™ connector is designed according to IEC 61 754-28 international standard.

Standard, modular designed F-3000™ Duplex mating adapter with interchangeable modular mounting brackets*.(Special brackets upon request) The innovative design permits dense packing and offers: - several installation solutions - spring-loaded metal protection shutters - high precision alignment sleeve (zirconia) *Separately order (see datasheet)

2.0 micron Fibre Laser Components

F-3000™ DUPLEX

Features

F-3000™ DUPLEX

F-3000 Duplex Part Number List F-3000 Duplex datasheet
