Multi Element Photodiode Array Two Dimensional Photodiode Array

Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area. If you cannot find what you are looking for from the information below, please contact us directly.

TWO DIMENSIONAL PHOTODIODE ARRAY

SILICON DETECTOR ARRAYS

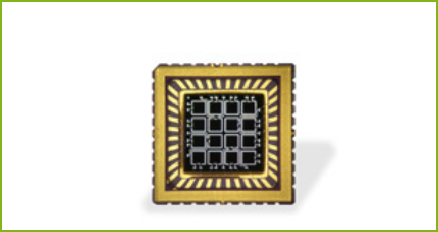

The UDT-4X4D is a 4 by 4 array of superblue enhanced Photodetectors. Our proprietary design provides virtually complete isolation between all of the 16 elements. The standard LCC package allows easy integration into your surface mount applications. Numerous applications include Ratio and Scattering measurements, as well as Position Sensing. For custom packages, special electro-optic requirements, or to order these parts in die form, please contact our Applications group.

Applications

Pulse Detectors
Optical Communications
Bar Code Readers
Optical Remote Control
Medical Equipment
High Speed Photometry

Two Dimensional Photodiode Array

Two Dimensional Photodiode Array

Features

High Speed Response
Low Capacitance
Low Dark Current
Wide Dynamic Range
High Responsivity

Two Dimensional Photodiode Array

Silicon Two Dimensional Photodiode Array
