CUSTOMISED SCANNING SOLUTIONS
Scan heads
Challenging and innovative applications often entail special developments, e.g. optical and mechanical design or special software solutions. Our Research & Development team partners with our customers from the idea to the system solution. We implement process task into innovative and reliable processes and product right through to series production.

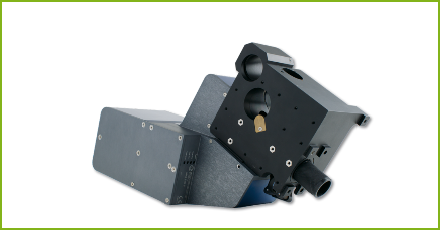

OEM COMPONENT FOR WOBBLE TRACKER
OEM COMPONENT FOR WOBBLE TRACKER

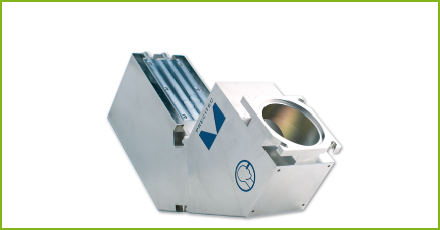

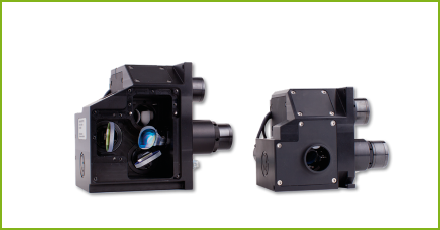

SINGLE PIVOT POINT SCANNER
SINGLE PIVOT POINT SCANNER
Novel design features in a nutshell
- Monolithic, stable scan block design
- Clear aperture for collimated full beam: 9.5 mm or 15 mm
- Maximum optical deflection angle from single pivot point: ± 28.5°
- Outstanding dynamic matching due to identical inertia of 3 mirrors
- Coatings for various laser wavelengths: 1020 – 1080 nm, 532 nm, 355 nm
- Auxiliary coating for pilot laser: 620 – 650 nm
- Optional coatings for diagnostic wavelengths: e. g. 850 nm
- Optional fast dynamic focus translator
- mounted directly into the scan block without further adjustment
- clear aperture 10.0 mm, lens travel 10.2 mm
- Optional attenuator module for power control without affecting the beam quality
- Straightforward beam delivery, only displacement in one axis
- Perfect optical alignment with a minimum of wavefront distortion
MEDICAL SCANNING SYSTEM
Novel design features in a nutshell
- Medical dual axis scan head for LASIK applications
- Aperture 16 mm
- Scan angle ± 3°
- Wavelength 193 nm
- Dustproof, monolithic design

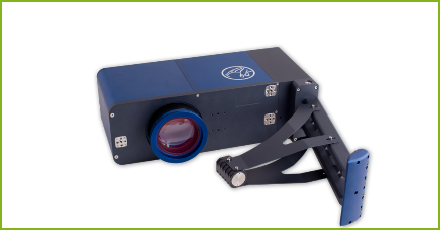

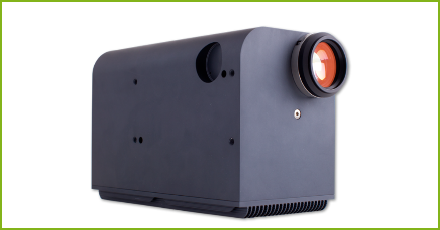

INDUSTRIAL SINGLE AXIS SCAN HEAD
Features
- Working distance: ca. 58 mm
- wavelength: 1064 nm
- mechanical scan angle: 10.5°
- aperture: 21 mm
- dimensions (L×W×H): 233 mm (+ objective and fiber-connection) × 115 mm × 158 mm
INDUSTRIAL SINGLE AXIS SCAN HEAD

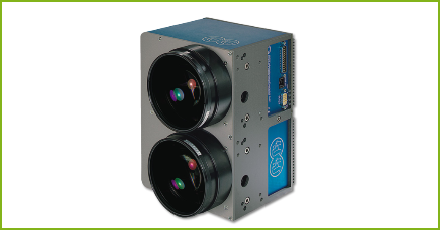

TWIN SQUIRREL
Features
- All commercial wavelengths
- Control via system controller or XY4-100 interface
- Compact dual scan head with separate beam inputs
- Either double the processing performance by parallel operation Or significantly extend the scan field using individual data for each head
- Configure each scan head for a different wavelength
- Process parts with 2 wavelengths without repositioning them in the area where the scan fields overlap
- Available with a distance of 95 mm or 115 mm between the optical output axes which in combination with different objectives results in different scan field sizes and overlap of these scan fields.

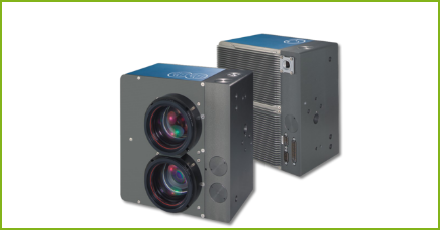

TWIN SQUIRREL BS
Features
- Output separation 95 or 115 mm
- Aperture 11 or 16 mm
- Wavelength 1064 nm
- Beam splitter
- Beam expander ×1.4, adjustable collimation
- Pilot laser
- Control via system controller or XY4-100 interface
- Either double the processing performance by parallel operation Or significantly extend the scan field using individual data for each head
