FIBRE COUPLED MULTI WAVELENGTH LEDS

BIOPHOTONICS SOURCES

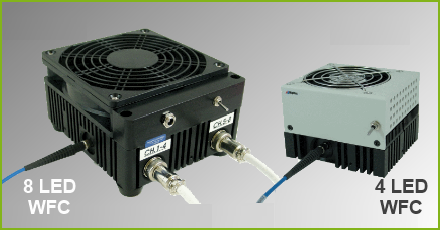

Fibre Coupled Multi Wavelength LED Sources

Mightex BLS-series BioLED light sources are modularised fully-customisable turn-key solutions for optogenetics, fluorescence excitation, and other biophotonics applications. Precisely-timed and high-intensity light pulses are required in optogenetics experiments to activate channelrhodopsins (ChR2, ChR1 etc.) and halorhodopsins (NpHR) in order to excite and inhibit neurons.

To meet these requirements, Mightex has developed a proprietary “IntelliPulsing” technology to allow BLS-series sources to output significantly higher power in pulse mode than what the LEDs are rated for in CW mode.

Mightex BLS-series multi-wavelength fibre-coupled LED light sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power.

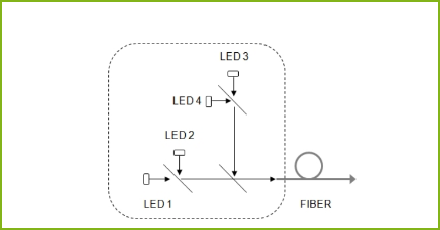

Multiple LED's with different emitting wavelengths are combined into the same fibre output with high efficiency and without using any moving parts in the optical path. In conjunction with BioLED light source control modules, these LED sources are ideal for optogenetics and other bio-photonics applications.

Fiber-Coupled and Multiple LED's

Features

Broad wavelength selection: 240nm to 940nm
Multiple wavelengths (i.e. up to 8) combined efficiently into the same optical fibre
Interchangeable fibre patchcord, ranging from 50µm to 1000µm core diameter
No moving parts in optical paths
LED's can be turned ON/OFF individually or at the same time
High output power
High stability (spatial and temporal)
Fast switching time (~µs)

Fiber-Coupled and Multiple LED's
