Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area.  If you cannot find what you are looking for from the information below, please contact us directly.


  UNIVERSAL LED CONTROLLERS

   LED SOURCES

Compact Universal 1 and 2 Channel LED Controllers


Features

  • Computer controlled
  • Universal - suitable for any LED
  • Dual control modes: DC or Strobe
  • Compact
  • User friendly application software with GUI
  • Capable of driving variable loads
  • Full-featured SDK
  • Up to 1,000mA output current
  • High precision with 1mA current resolution




Compact Universal 1 and 2 Channel LED Controllers





Compact Universal 1 & 2 Ch Controllers Universal High Precision 2 & 4 Ch Controller Universal 12 & 16 Ch Comp Cont, 5mA Res  Universal 12 & 16 Ch Comp Cont, 1mA Res  Universal High Current 2 Ch,  Ext Triggers Universal 2 & 4 Ch, Ext Trig & Fwd Volt Mon  Universal 2 & 4 Ch, Ext Triggers

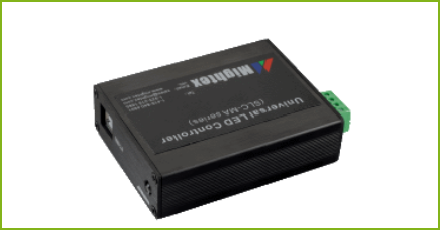

Compact Universal 1- and 2- Channel LED Controllers


Mightex’s Compact 1- and 2- Channel Computer-Controlled Universal LED Drivers are designed to drive a broad range of LED light sources. Each unit comes with a powerful PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a full-featured SDK is provided, in order for users to write their own software and to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in protection feature, allowing users to limit LED driving current and voltage. Each channel can be individually configured to work under one of the following two modes: Normal Mode (or DC Mode): The output current is a constant, which can be adjusted (using software) from 0 mA to 1,000 mA, through the USB interface; and Strobe Mode: A Pulse-Width-Modulated (or PWM) periodic strobe pattern is output from the channel, which can be turned on by a software trigger. The strobe pattern may last indefinitely or for a preset number of cycles. The frequency of the PWM strobe can be up to 500Hz. In addition, each channel can be individually DISABLED and ENABLED. No voltage or current is output from a DISABLED channel

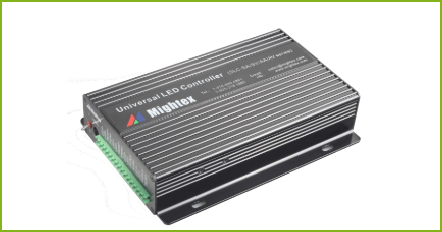

Universal Two- and Four-Channel LED Controllers with External Triggers


Mightex has developed a series of computer-controllable, multi-channel, universal LED drivers, which can be used to drive any type of LED in any of the three (3) modes: ‘NORMAL’ (or ‘constant current’), ‘STROBE’, and/or external ‘TRIGGER’ mode. Each unit comes with PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a powerful SDK and a rich RS232 command set are provided, in order for users to write their own software in order to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in security feature, allowing users to limit LED driving current and voltage.

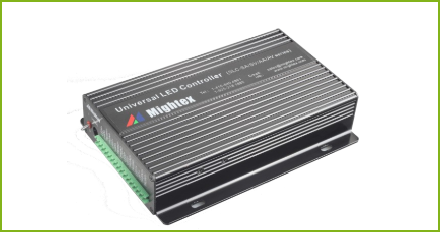

Universal Two- and Four-Channel LED Controllers with External Triggers and Voltage Monitoring Capability


Mightex has developed a series of computer-controllable, multi-channel, universal LED drivers, which can be used to drive any type of LED in any of the three (3) modes: ‘NORMAL’ (or ‘constant current’), ‘STROBE’, and/or external ‘TRIGGER’ mode. Each unit comes with PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a powerful SDK and a rich RS232 command set are provided, in order for users to write their own software in order to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in security feature, allowing users to limit LED driving current and voltage.


LED controllers listed here all have forward voltage monitoring (FVM) capability. Please click on 'Others' tab below for details of FVM.



High-Precision Universal 2- and 4-Channel LED Controllers with External Triggers and 0.1mA Current Resolution


Mightex has developed a series of computer-controllable, multi-channel, universal LED drivers, which can be used to drive any type of LED in any of the three (3) modes: ‘NORMAL’ (or ‘constant current’), ‘STROBE’, and/or external ‘TRIGGER’ mode. Each unit comes with PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a powerful SDK is provided, in order for users to write their own software and to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in security feature, allowing users to limit LED driving current and voltage.


This datasheet covers four (4) product series (i.e. FA, FV, XA and XV series) of High-Precision Universal 2- and 4-Channel LED Controllers with External Triggers and 0.1mA Current Resolution, which currently include 8 models in total. All FA/FV/XA/XV LED controllers have 0.1mA current resolution, and a maximum current of 100mA in DC mode and 350mA in pulse mode.



High-Current Universal 2-Channel LED Controllers with External Triggers and up to 2,000mA (CW) & 3,500mA (PWM) Output Current


Mightex has developed a series of computer-controllable, multi-channel, universal LED drivers, which can be used to drive any type of LED in any of the three (3) modes: ‘NORMAL’ (or ‘constant current’), ‘STROBE’, and/or external ‘TRIGGER’ mode. Each unit comes with PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a powerful SDK is provided, in order for users to write their own software and to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in security feature, allowing users to limit LED driving current and voltage.


This datasheet covers two (2) product series (i.e. HA and HV series) of High-Precision Universal 2-Channel LED Controllers with External Triggers and up to 2,000mA (CW) & 3,500mA (PWM) Output Current.

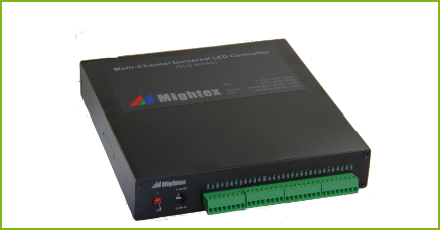

Universal 12- and 16- Channel Computer-Controlled LED Drivers with 1mA Current Resolution


Mightex’s High-Precision 12- and 16- Channel Computer-Controlled Universal LED Drivers are designed to drive a broad range of LED light sources. Each unit comes with a powerful PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a full-featured SDK is provided, in order for users to write their own software and to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in protection feature, allowing users to limit LED driving current and voltage



Universal 12- and 16- Channel Computer-Controlled LED Drivers with 5mA Current Resolution


Mightex’s 12- and 16- Channel Computer-Controlled Universal LED Drivers are designed to drive a broad range of LED light sources. Each unit comes with a powerful PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a full-featured SDK is provided, in order for users to write their own software and to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in protection feature, allowing users to limit LED driving current and voltage.
