ELUXI_Quartz_Quartz

DETAILS & DOWNLOADS

Hard Plastic Clad Fibres Plastic Clad Silica Fibres Quartz Quartz Fibre

Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area. If you cannot find what you are looking for from the information below, please contact us directly.

QUARTZ / QUARTZ OPTICAL FIBRE

OPTICAL FIBRE

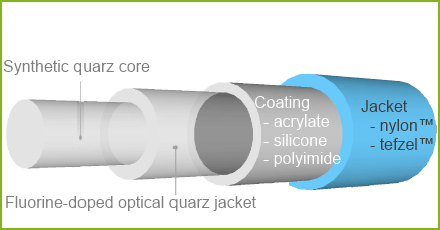

Quartz/Quartz Fibres

We manufacture all fibres according to your specifications:

Solarisation-optimised UV/VIS fibres, from 200 nm to 1100 nm
UV/VIS fibres, from 200 nm to 1100 nm
VIS/IR fibres, from 450 nm to 2200 nm
UV/VIS/IR fibres, from 300 nm to 2000 nm

Features

Low solarisation
Fibres available for the lower UV range
Standard NA 0.22 (+/0,02), NA 0.10 (+/0,02) to 0.40 (+/0,02) on request
Diff. core diameter: from 50 µm to 1800 µm
Diff. core/jacket ratio: standard 1.05 to 2.4

Quartz Quartz Fibre

Features

Low solarization
Fibres available for the lower UV range
Standard NA 0.22 (+/- 0,02), NA 0.10 (+/- 0,02) to 0.40 (+/- 0,02) on request
Diff. core diameter: from 50 µm to 1800 µm
Diff. core/jacket ratio: standard 1.05 to 2.4
All fibres manufactured to your specifications.
Solarisation-optimised UV/VIS fibres
UV/VIS fibres, from 200 nm to 1100 nm
VIS/IR fibres, from 450 nm to 2200 nm
UV/VIS/IR fibres, from 300 nm to 2000 nm

Quartz Quartz Fibre

UV polyimide WF polyimide LightguideOptics Brochure
