ATTENUATION PATCH

SPECIAL ASSEMBLIES

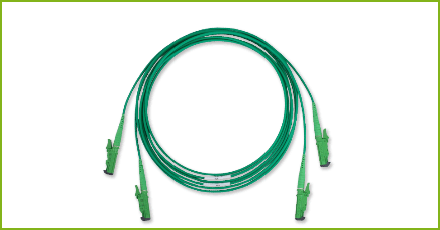

ATTENUATION PATCH

The OAF-PATCH range of DIAMOND is a products-family of wavelength independent fixed attenuation-patchcords suitable for each connector system type. Offering a large choice of nominal attenuation (2 to 30 dB), the patchcord technology is the right one for applications in restricted places which need precise power level, simplifying cabling and allowing the right attenuation with all connector types.

- Fiber type: 9/125 µm - Wavelength: 1310/1550 nm - Nominal attenuation: 2 ±0.5 / 4 ±0.5 / 5 ±0.5 / 6 ±0.5 / 10 ±1 / 15 ±1.5 / 20 ±2 / 25 ±2.5 / 30 ±3 [dB] - Repeatability: < 0,5 dB over service life

2.0 micron Fibre Laser Components

ATTENUATION PATCH

ATTENUATION PATCH

OAF-Patch datasheet
