ST™ FUSION

FUSION FAMILY

ST™ FUSION

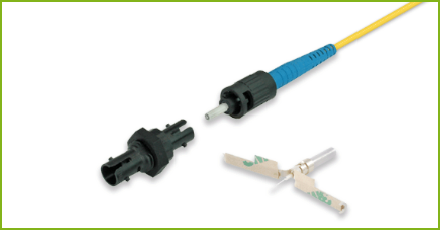

The ST™ FUSION allows you to quickly and easily make field terminations with the performance you expect from Diamond-quality ST™ Standard connectors. The key to this system is DIAMOND’s advanced "crocodile alberino" fusion field ferrule assembly. The ferrule assembly consists of a factory-terminated fiber endface, fiber stub, and integrated splice protection. The fiber endface is core-centered via Diamond’s well-known Active Core Alignment process and factory-polished to the company’s exacting specifications. The ST™ Fusion is then field terminated via a low loss fusion splice using the Diamond Fusion Field Termination Kit. The ST™ Fusion is available for SM and MM fiber (250 & 900 µm) and cable (2.1-to 3.1 mm) in 0° PC version. Other fiber types can also be accommodated upon request.

ST Fusion Part Number List Fusion ST datasheet

ST™ FUSION

ST™ FUSION
