  AMPLIFIERS

  RAMAN FIBRE AMPLIFIERS

Raman Fibre Amplifiers

MPBC’s Raman Fibre Amplifier System is capable of amplifying a narrow, polarized, NIR input signal without spectrum broadening.

In addition, MPBC offers the option of converting the NIR signal into the visible region.

• 1053nm               526nm
• 1064nm               532nm
• 1120nm               560nm
• 1136nm               568nm
• 1140nm               570nm
• 1160nm               580nm
• 1166nm               583nm
• 1178nm               589nm
• 1185nm               592nm
• 1190nm               595nm
• 1212nm               606nm
• 1226nm               613nm
• 1240nm               620nm
• 1256nm               628nm
• 1280nm               640nm
• 1284nm               642nm
• 1294nm               647nm
• 1340nm               670nm

NIR output powers of up to 8 Watts can be achieved with MPBC’s air-cooled platform, and a water-cooled option is available for even higher power for specific wavelengths.

If visible output is required, MPBC single-pass SHG can handle output powers of up to 2 Watts.

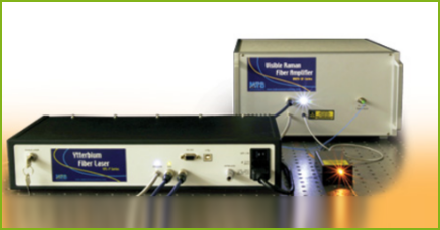

The VRFA System consists of three modules:

• Raman Fibre Amplifier: Based on single-mode polarization-maintaining fibre, the RFA accepts the seed signal, amplifies it without spectrum broadening, and outputs it to the Second Harmonic Generator
• Ytterbium Fibre Laser: Pumps the Raman Fibre Amplifier with high-intensity linearly polarized emission needed for the amplification
• Second Harmonic Generator: Doubles the output wavelength to the visible spectrum

Resonant Frequency Doublers

For increased efficiencies and output powers in the visible regime, resonant frequency doublers are available from ELUXI.

For more information, click  on the link below:
