Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area. If you cannot find what you are looking for from the information below, please contact us directly.

COLLIMATED LEDS

BIOPHOTONICS SOURCES

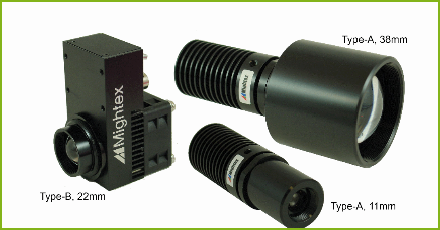

Collimated LED Sources

Mightex BLS-series BioLED light sources are modularised fully-customisable turn-key solutions for optogenetics, fluorescence excitation, and other biophotonics applications. Precisely-timed and high-intensity light pulses are required in optogenetics experiments to activate channelrhodopsins (ChR2, ChR1 etc.) and halorhodopsins (NpHR) in order to excite and inhibit neurons. To meet these requirements, Mightex has developed a proprietary “IntelliPulsing” technology to allow BLS-series sources to output significantly higher power in pulse mode than what the LEDs are rated for in CW mode.

Mightex BLS-series collimated LED light sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power. Using Mightex multi-wavelength beam combiners, multiple collimated LED's with different emitting wavelengths can be combined into one collimated beam with high efficiency and without using any moving parts in the optical path. In conjunction with BioLED light source control modules, these LED sources can be used for a wide range of applications including optogenetics and other bio-photonics applications.

Collimated LED's

Collimated LED's

Features

Broad wavelength selections 240nm to 940nm
Multiple wavelengths (i.e. up to four) can be combined efficiently into one collimated beam
No moving parts in optical paths
LED's can be turned ON/OFF individually or at the same time
High output power
High stability (spatial and temporal)
Fast switching time (~µs)

Delivering

Photonics Solutions
