ELUXI_PIN_Amp_Detectors

DETAILS & DOWNLOADS

PIN Amp Detectors PIN FET Detectors PIN FET Detector_ LDPA0003R InGaAs PIN Photodiodes

Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area. If you cannot find what you are looking for from the information below, please contact us directly.

PIN AMP MINI DIL OPTICAL RECEIVER MODULES

InGaAs DETECTORS

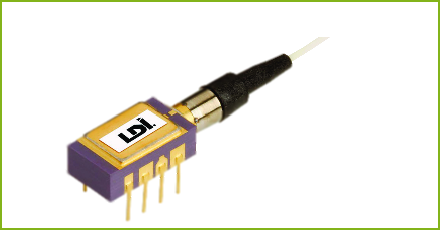

PINAMP Mini DIL Optical Receiver Modules

OSI Laser Diode, Inc. (LDI) PINAMPs provide a low cost, high performance miniature optical receiver module which integrates a high speed, high responsivity, low leakage current InGaAs photodiode with a GaAs transimpedance amplifier. The transimpedance amplifier incorporates automatic gain control providing high optical overload performance. The receiver package offers high reliability which satisfies Telcordia GR-468-CORE specifications.

The pigtailed receivers are available with industry standard FC, LC, SC, and ST® connectors. Custom connectors are also available.

Applications

Supervisory Channel
Long Haul Transmission Networks
Short Haul Transmission Networks
DWDM Transponders
SDH/SONET Singlemode Applications
Instrumentation and Testing
Data Communications
Gigabit Ethernet

PINAMP Mini DIL Optical Receiver Modules

1310 nm and 1550 nm

Features

4 Mb/s, 52 Mb/s, 155 Mb/s, 622 Mb/s, 1 Gb/s data rates
High Responsivity and Low Dark Current InGaAs Pin Detector
High Sensitivity
Wide Dynamic Range
Single Supply Operation
Hermetic Package
Single Ended
Differential Output (1 Gb/s only)

PINAMP Mini DIL Optical Receiver Modules

1310 nm and 1550 nm

PINAMP Mini DIL Optical Receiver Modules
