PRECISION MOULDED OPTICS
Precision Moulded Optics
Eastman Kodak developed the Precision Glass Moulding (PGM) technology for rapidly producing aspheric lenses. At one time Eastman Kodak produced millions of lens per month for the Disc Camera project. Later, the PGM process was adapted to mass produce aspheric lenses in support of larger lens systems. Optical designers were then able to incorporate aspheric elements into high volume designs, reducing lead times and lowering costs. Today at Rochester Precision Optics the PGM process offers both catalogue and custom moulded glass aspheric lenses in sizes from 1mm to 60mm in diameter.

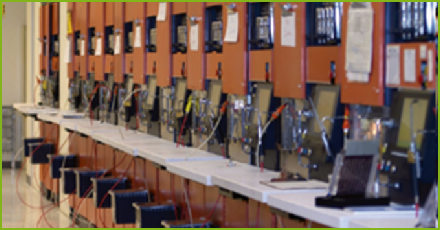

The highly repeatable PGM process is accomplished by heating and press forming optical grade glass blanks (preforms) using ultra precision tooling. RPO’s vertical integration allows for in-
The moulding process produces an optic that has a free form edge; when necessary, a secondary operation of centring defines the finished diameter. These moulded lenses can have spherical, aspherical and biaspherical surfaces.
Moulded Aspherical Assemblies
Features
- Full spectrum capabilities including rapid prototyping
- Custom-
and high volume assembly of sub- assemblies and image modules - Testing includes:
- Radiometric properties
- MTF
- Longitudinal & lateral aberrations
- Lens centration
- Mechanical assemblies supported by
- In-
house machine shop - Latest CNC technology for precision lens spacers and barrels.

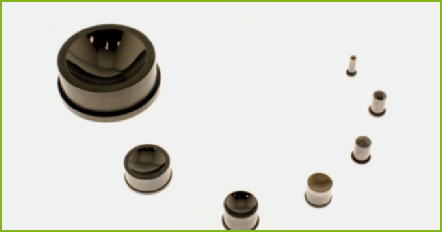

Moulded Aspherical Assemblies
Precision Moulded Aspheric Manufacturing

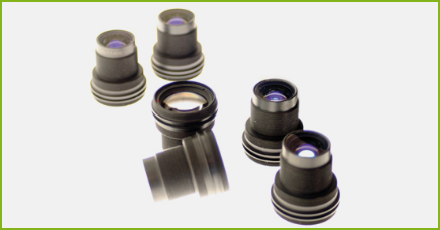

IR Moulded Aspheres
Features
- High performance Mid & LW IR aspheres.
- Moulded glasses
- Precision Moulding of Optir™ Chalcogenide glass:
- Excellent part to part uniformity,
- Lower material costs
- Low thermal change in refractive index avoiding thermal defocusing
- Diamond Turning
IR Moulded Aspheres

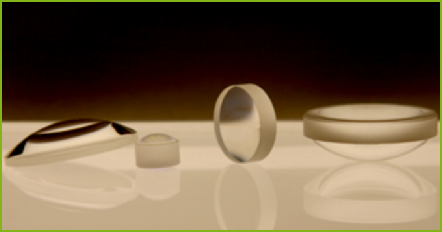

Visible Moulded Aspheres
Features
- Standard & custom aspheres
- 1mm to 60mm diameters
- Catalogue collimation optics
Visible Moulded Aspheres

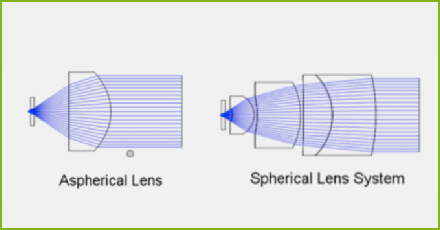

Aspherical Advantage
Features
- Reduction in
- Weight,
- Number of Optical Elements,
- Offers more compact Design
- Improved Performance i.e. MTF
- Improved tolerances
- Tilt and alignment
- Greater tolerance budget
- Ease of Assembly
Aspherical Advantage
