Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area.  If you cannot find what you are looking for from the information below, please contact us directly.

  ELECTRICAL NARROW BAND TUNABLE FILTER

  OPTICAL FILTERS

ELECTRICAL NARROW BAND TUNABLE FILTER

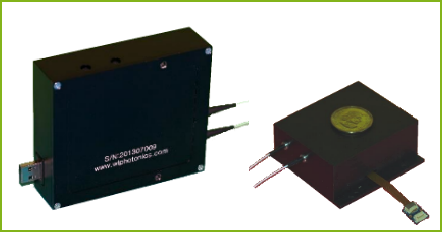

WLTF- is full series of fiber pigtailed tunable optical filters built with free-space diffraction gratings. Advanced design based on optical Fourier transform offers flexible spectral filtering of narrow bandwidth, wide bandwidth, long-/short- bandpass and adjustable bandwidth  over 1000-1700nm.

The filter is built based on company's proprietary platform of "Crystal-Bench". Unique design and proprietary platform offer the filter unprecedented low insertion loss & polarization-dependent loss. Precise tuning mechanism provides filter high wavelength resolution and excellent wavelength repeatability.

Besides standard manual and electrical versions,  custom OEM solution is also available on request. For more details, see the filters below.

Applications

• ASE noise suppression
• Optical channel monitor
• Narrowband DWDM channel filtering
• Pulse Shaping
• Tunable fiber lasers
• Portable optical spectrum analyzers

  ELECTRICAL NARROW BAND TUNABLE FILTER

  ELECTRICAL NARROW BAND TUNABLE FILTER

Key Features

• Wavelength range over X-, O-, S-, C- and L- bands
• Up to 120nm wavelength tuning range
• Down to 0.1nm FWHM bandwidth
• Unprecedented low IL and PDL
• High out-band suppression
• High optical power handling C
• Custom OEM versions available
