ELECTRICAL WIDE BAND TUNABLE FILTER

OPTICAL FILTERS

ELECTRICAL WIDE BAND TUNABLE FILTER

The WLTF-WE is a flat-top wideband optical tunable filter that allows electrical-tuning of center wavelength over X, O, S, C, & L bands. Its bandwidth ranges from 1.5nm to several tens nm. The filter is built based on WL Photonics’ proprietary platform of “Crystal-Bench” with free-space diffraction grating. Wavelengthtuning is actuated by a built-in micro motor connected to a PC through a USB interface. The actuation is monitored by a built-in encoder and controlled dynamically in a closed-loop. The control software of the motor is provided.

Unique optics design enables the filter to offer a great variation of bandwidth options, unprecedented & unsuppressed low insertion loss and polarization dependent loss (PDL) over main wavelength bands from 1000nm to 1700nm. Precise tuning mechanism enables filter to provide high wavelength resolution and excellent wavelength repeatability. Company proprietary compact design and manufacturing process allow the filter to maintain excellent stability. The fast setup enables the filter of being an affordable OEM wavelength-tuning solution for system integrations.

Applications

ASE noise suppression
Wideband WDM channel filtering
Pulse Shaping
Signal Filtering

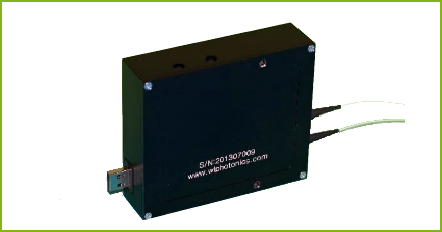

WLTF-WE Electrical Wide Band Tunable Filter

1.5 micron Fibre Amplifiers Pulsed

ELECTRICAL WIDE BAND TUNABLE FILTER

ELECTRICAL WIDE BAND TUNABLE FILTER

Key Features

Wavelength range over X-, O-, S-, C- and L- bands
Up to 120nm wavelength tuning range
1.5nm to several tens nm bandwidth
Unprecedented insertion loss and PDL
High out-band suppression
High optical power handling
