 MANUAL BANDPASS TUNABLE FILTER

  OPTICAL FILTERS

MANUAL BANDPASS TUNABLE FILTER

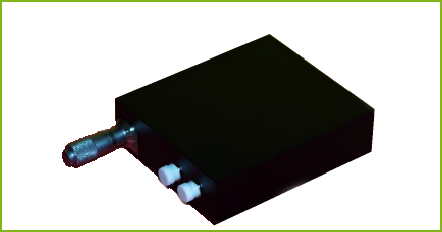

The WLTF-BM is a bandpass tunable optical filter that allows manual-tuning of a passband while blocking the complementary band simultaneously over X, O, S, C, & L bands. The filter is built based on WL Photonics’ proprietary platform of “Crystal-Bench” with free-space diffraction grating. Manually wavelength tuning is done through a precise micrometer driver. Due to the optimized linear dispersion with the filter, the edge wavelength of transmission passband can be read easily from the micrometer.

Unique optics design enables the filter to offer a great variation of operation band options, unprecedented & unsuppressed low insertion loss and polarization dependent loss (PDL) over main wavelength bands from 1000nm to 1700nm. Precise tuning mechanism enables filter to provide high wavelength resolution and excellent wavelength repeatability. Company proprietary compact design and manufacturing process allow the filter to maintain excellent stability. The fast setup enables the filter of being a cost-effective OEM wavelength-tuning solution for system integrations

Applications

• ASE noise suppression
• Wide band WDM channel filtering
• Pulse Shaping
• Signal Filtering

 MANUAL BANDPASS TUNABLE FILTER

 MANUAL BANDPASS TUNABLE FILTER

Key Features

• Wavelength range over X-, O-, S-, C- and L- bands
• Up to 200nm wavelength tuning range
• Long-pass or short-pass type available
• High out-band suppression
• High optical power handling
