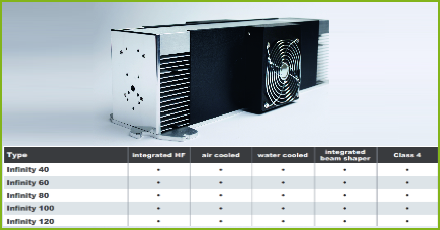

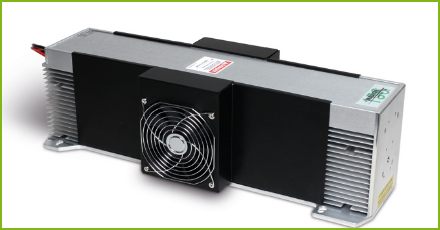

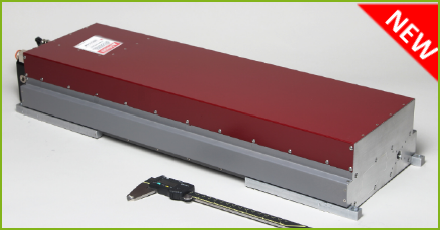

Infinity CO2 Lasers
The new Iradion Infinity CO2 laser series combines the exceptional performance of a monolithic ceramic resonator with the latest RF design into a single integrated package. The result is a compact, efficient, and powerful laser with fast pulsing and great optical characteristics.
- The ceramic core provides reliability and stability. No RF feed-
through or internal components to wear on each other, and no metal components are directly exposed to the discharge plasma.
- Iradion’s gas filling technology provides fast rise and fall times allowing rapid processing for table or galvanometer based systems.
- Customer defined OEM configurations for cooling, mounting, and optical delivery are possible.
Applications
- Marking
- Engraving
- Cutting
- Patterning
Ceramic Core Concept
Most competitive CO2 laser designs to date are based on the original R&D approach developed at several different aerospace companies since the 1970s. This old approach involves extruding or machining aluminum bodies to contain the optical and electrical components inside the laser gas envelope. These designs are convenient for R&D work, but not ideal for building lasers that are reliable. The leading reliability issue with Metal lasers is that the metal is highly reactive with the gas mixture. Over time, as internal components wear on each other, fresh aluminum is exposed and free oxygen in the gas reacts with this raw metal changing the composition of the original gas mixture. In addition, many of these designs use O-
Ceramic technology solves these problems by moving all the reactive components to the outside of the vacuum enclosure leaving only pure clean Alumina (Al2O3) ceramic in contact with reactive gasses. Alumina, will not react with the gas. Alumina can also be fired at very high temperatures as part of the cleaning process. This further assures there are no organic contaminants (dust, oils and other environmental contaminants) remaining to react with the gas. The ceramic laser tube is also the optical frame that holds the resonator optics. The CTE (coefficient of thermal expansion) of alumina is 1/3 the CTE of aluminum. Since laser cavity thermal variations have a direct impact on laser stability, Iradion’s Ceramic-
Infinity CO2 Lasers
Features
- Patented Family of CO2 Lasers
- Monolithic ceramic resonator design
- Using the latest RF technology
- Single integrated package
- Providing
- Compact Source
- Long Operational Lifetime
- Interchangeable Capability
- Ultra efficient
- Fast pulsing
- Great optical quality
Infinity CO2 Lasers
Infinity CO2 Lasers - Data Sheet
Iradion Lasers - Brochure
